Massey Ferguson

1736

Tractor

Displacement
104 in³
Power Measured @
2,500 rpm
Gross Power
36.2 hp
All tractors

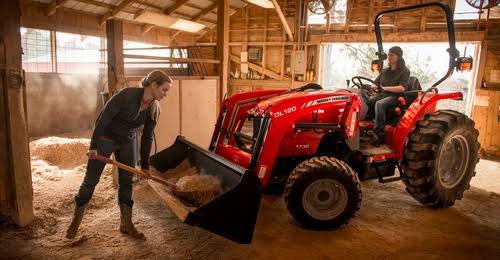

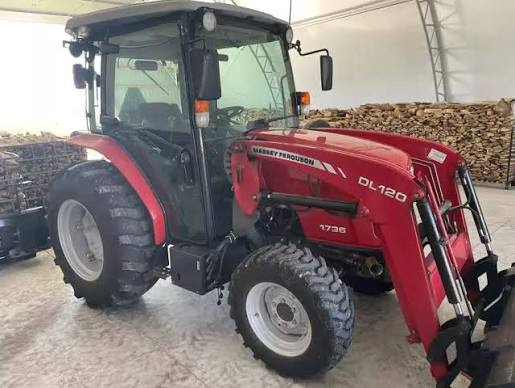

Massey Ferguson 1736 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity10.6 gal
3 Point Hitch Lift Capacity @ 24 inches2,535 lb
Hydraulic System Fluid Capacity11.6 gal

Engine

Engine specifications
Engine Model1736
Displacement104 in³
Power Measured @2,500 rpm
Gross Power36.2 hp
Number of Cylinders3
AspirationTurbocharged
Cooling methodLiquid-cooled

Dimensions

Dimensions specifications
Height - Top of Cab93 in
Wheelbase70 in
Overall Length122 in

Transmission

Transmission specifications
Transmission Type12 X 12 power shuttle
Differential lockMechanical engagement
Brake typeInternal wet disc brakes

Production

Production specifications
Series1700 Series
Years Manufactured2,013 – 2,018
