Massey Ferguson

1840

Baler

Overall Width
102 in
Overall Height
73 in
All balers

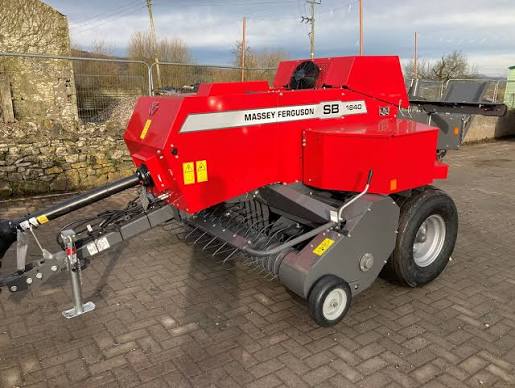

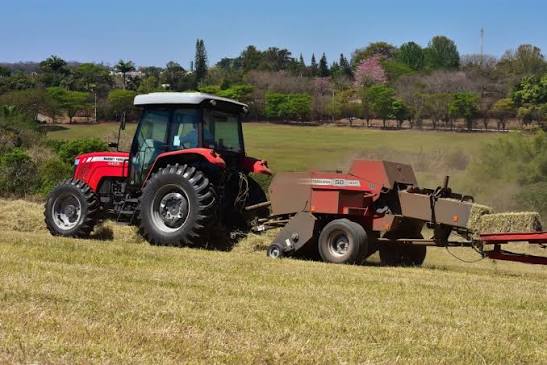

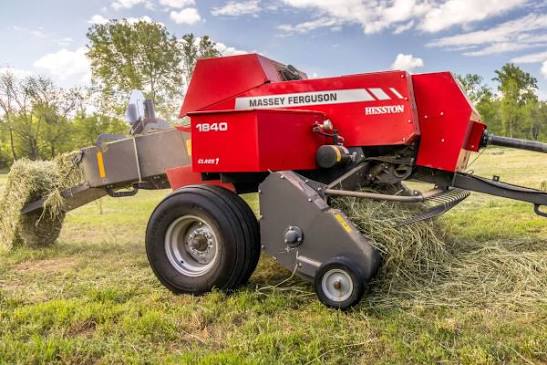

Massey Ferguson 1840 Baler
1 / 5
Image 1 of 5
Image: masseyferguson.com

Specifications

38 data points

Engine

Engine specifications
PTO Speed540 rpm
PTO Horsepower49.7 hp

Dimensions

Dimensions specifications
Overall Length64 in
Overall Width102 in
Overall Height73 in
Weight500 lb
Length w/bale chute204 in
Height w/shielding65 in
Length w/o bale chute168 in
Length w/bale thrower240 in

Tires & Wheels

Tires & Wheels specifications
Standard31 x 13.5-15 8 Ply

Bale Size

Bale Size specifications
Bale Length - max53 in
Bale Weight - max71 lb
Bale Length - min13 in
Bale cross section,Height X Width(in,mm)14 x 18 (356 x 457)
Baler weight3,499 lb

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width71 in
Number of Tines112
Inside Width76 in
Pickup gauge wheel2
Outer tine-to-tine width89 in
Pickup protectionOverrunning torque limiter
Augers11 in

Feeding Chamber

Feeding Chamber specifications
Stuffer TypeCrank type w/4 tines
ProtectionShearbolt
DriveNo. 60HD chain

Plunger

Plunger specifications
Stroke Length22 in
Plunger speed (strokes/min)100

Wrapping System

Wrapping System specifications
Twine Ball Capacity—
Twine TypeKnotters
ProtectionShearbolt

Bale Chamber

Bale Chamber specifications
Apron beltsFlywheel
Apron belts - Number2
Apron belts - Size12 in
Apron belts - TypeWedge Grip pattern
Baler Thrower typeBelt
Belt driveHydraulic pump driven by baler
