Massey Ferguson

1842

Baler

Overall Width
106 in
All balers

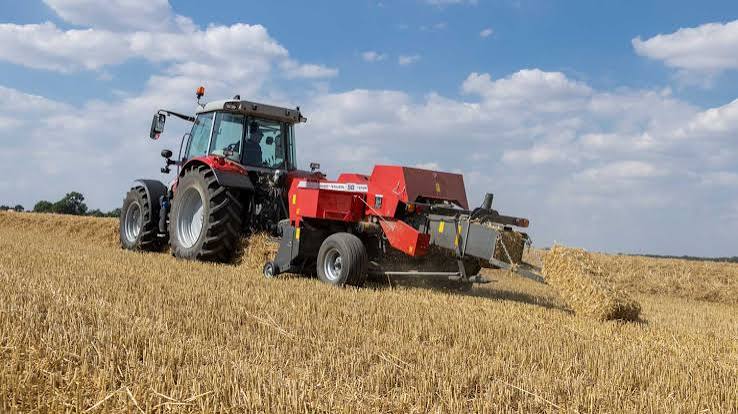

Massey Ferguson 1842 Baler
1 / 5
Image 1 of 5
Image: masseyferguson.com

Specifications

27 data points

Engine

Engine specifications
PTO Speed540 rpm
PTO Horsepower49.7 hp

Dimensions

Dimensions specifications
Overall Width106 in
Length w/bale chute244 in
Height w/shielding66 in
Length w/o bale chute202 in

Tires & Wheels

Tires & Wheels specifications
Standard31 x 13.5-15 8 Ply

Bale Size

Bale Size specifications
Bale Length - max53 in
Bale Length - min13 in
Bale cross section,Height X Width(in,mm)16 x 18 (406 x 457)
Baler weight4,376 lb

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width71 in
Number of Tines112
Inside Width78 in
Pickup gauge wheel2
Outer tine-to-tine width91 in
Pickup protectionSlip and overrunning clutch
Augers13 in

Feeding Chamber

Feeding Chamber specifications
Stuffer TypeCrank type cam controlled w/3 tines
ProtectionShearbolt
DriveNo. 80 chain

Plunger

Plunger specifications
Stroke Length23 in
Plunger speed (strokes/min)100

Wrapping System

Wrapping System specifications
Twine Ball Capacity—
Twine TypeKnotters
ProtectionShearbolt
