Massey Ferguson

2290

Baler

Bale Width
48 in
Overall Width
117,875 in
All balers
Massey Ferguson 2290 Baler
1 / 5

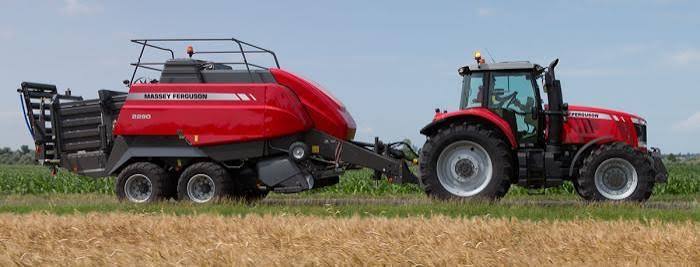

Image 1 of 5
Image: allmachines.com

Specifications

32 data points

Engine

Engine specifications
PTO Speed1,000 rpm
Weight21,537 lb
Electrical System12 volt DC
Horsepower - Gross150.0 hp

Dimensions

Dimensions specifications
Overall Length325 in
Overall height - To top of folded hand rails131 in
Overall width w/single axle130 in
Overall width w/tandem axles118 in
Overall height - To top of raised hand rails141 in

Tires & Wheels

Tires & Wheels specifications
Single axle28L x 26 16 ply
Tandem axle500-50 x 17 16 ply

Bale Size

Bale Size specifications
Bale Width48 in
Bale Length - max108 in
Bale Height50 in
Baler weight w/single axle23,197 lb
Baler weight w/tandem axle, Packer version24,321 lb

Baler Pickup

Baler Pickup specifications
Overall Width117,875 in
Number of Tines64
Inside Width85 in
Tine spacing3 in

Feeding Chamber

Feeding Chamber specifications
Packer TypeRC 100 Roller Chains
Packer protectionSlip Clutch
Stuffer Fingers6
Stuffer protectionShear bolt on main drive sprocket

Plunger

Plunger specifications
Stroke Length32 in
Plunger speed (strokes/min)33

Wrapping System

Wrapping System specifications
Twine Ball Capacity30
Twine TypeHigh quality split film polypropylene or sisal twine
KnottersSix double knot

Driveline

Driveline specifications
Driveline TypeType 2 or Type 3 PTO
GearboxEnclosed double reduction
ProtectionOverrunning slip clutch and shear bolt
