Massey Ferguson

2635

Tractor

Displacement
220 in³
Power Measured @
2,200 rpm
Gross Power
74.0 hp
All tractors

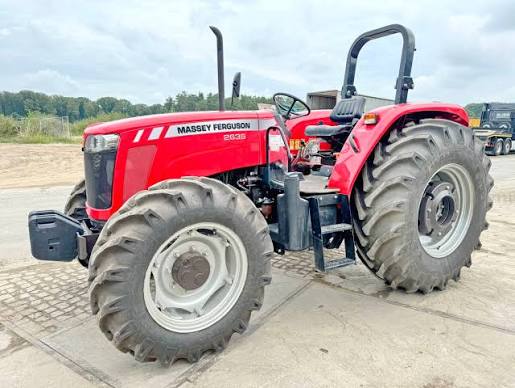

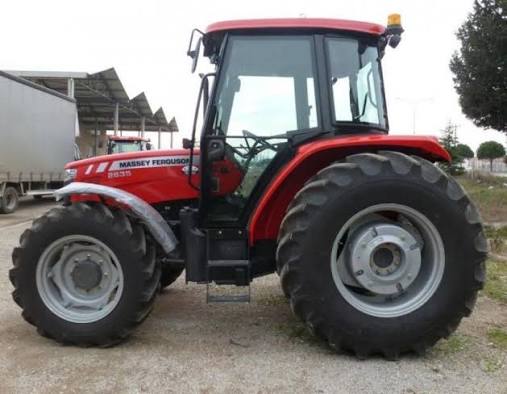

Massey Ferguson 2635 Tractor
1 / 5
Image 1 of 5
Image: tractorguru.in

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity17.2 gal
Tire Size Front - 2wd / 4wd16.9x28

Engine

Engine specifications
Engine ModelTSJ436E
Displacement220 in³
Power Measured @2,200 rpm
Gross Power74.0 hp
Number of Cylinders4
AspirationTurbo
PTO Power62.0 hp

Weights

Weights specifications
Shipping5,798 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.8 gal/min
Number of Remote Control Valves—
Hydraulic System TypeOpen Center and Modified Closed Center
Pump TypeGear and Scotch Yoke
Auxiliary hydraulic flow11.2 gal/min

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase81 in
Overall Length138 in
Overall Width73 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears2
Optional8F x 8R Shuttle

Production

Production specifications
Series2600 Series
Years Manufactured2,010 – 2,018

Electrical System

Electrical System specifications
Alternator45

3-Point Hitch

3-Point Hitch specifications
Lift capacity @ 24in. (ASAE)4,519 lb
Extendable lower linksOptional

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeDry Dual Disc
PTO speed540 rpm
OptionalIndependent
StandardLive
PTO Speeds @ Engine rpm1,790
