Massey Ferguson

2705E

Tractor

Displacement
134 in³
Power Measured @
2,600 rpm
Gross Power
48.8 hp
All tractors

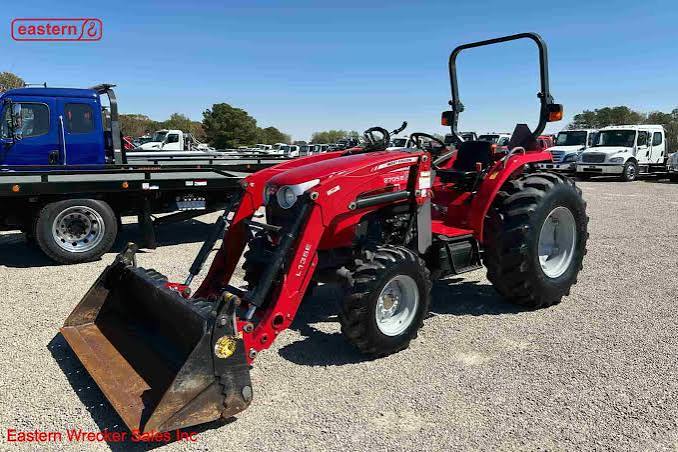

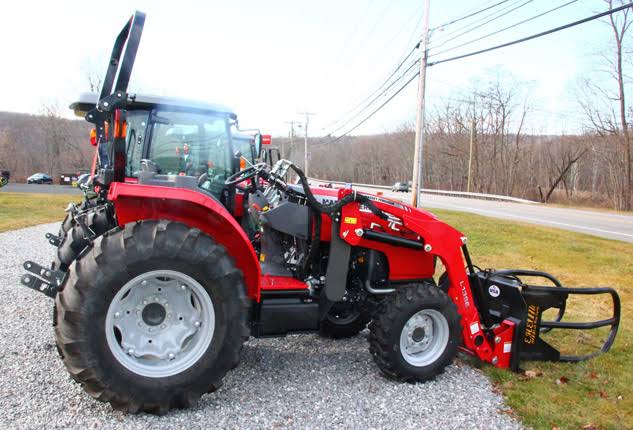

Massey Ferguson 2705E Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity14.0 gal

Engine

Engine specifications
Engine ModelN4LDI-T
Displacement134 in³
Power Measured @2,600 rpm
Gross Power48.8 hp
Number of Cylinders4
AspirationLiquid-cooled
Engine MakeShibaura
PTO Power41.4 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity12.4 gal/min
Hydraulic System TypeOpen Center system
Pump TypeGear type single pump

Dimensions

Dimensions specifications
Wheelbase78 in
Overall Length133 in
Overall Width76 in
Height - Top of ROPS/FOPS104 in

Electrical System

Electrical System specifications
Alternator90
Battery12 V

3-Point Hitch

3-Point Hitch specifications
Lift capacity @ 24in. (ASAE)2,425 lb

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeElectro-hydraulically engaged
PTO speed540 rpm
OptionalIndependent
StandardLive
