Massey Ferguson

2946

Baler

Bale Width
47 in
Overall Width
102 in
Overall Height
121 in
All balers

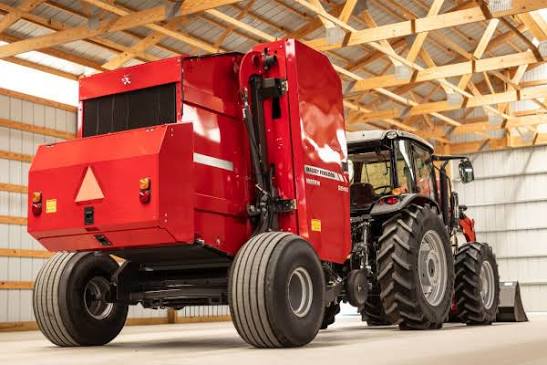

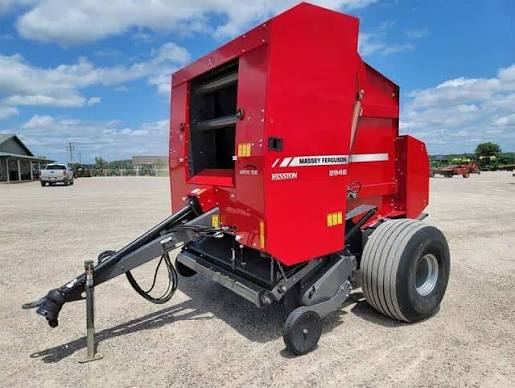

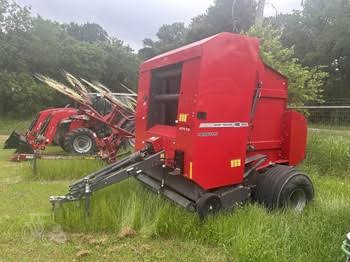

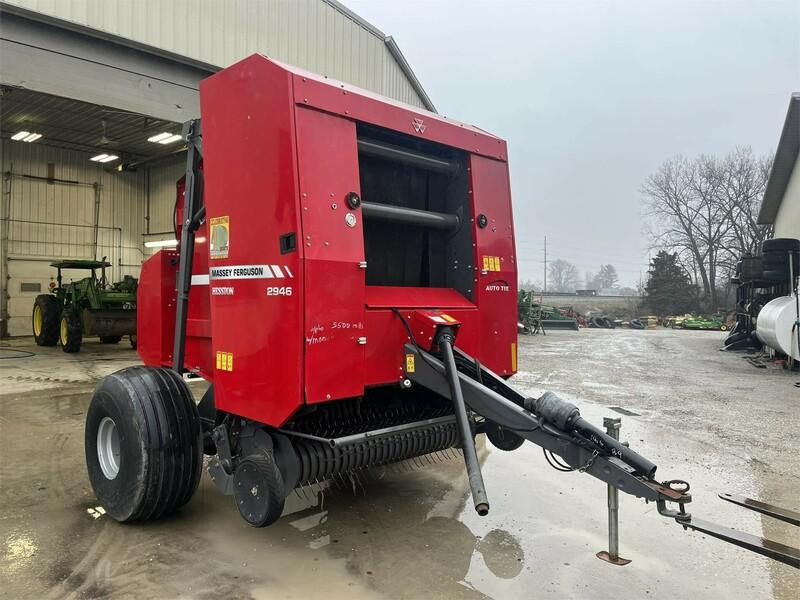

Massey Ferguson 2946 Baler
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

22 data points

Engine

Engine specifications
PTO Speed1,000 rpm
Weight5,999 lb

Hydraulic System

Hydraulic System specifications
Hydraulic remote valvesTwo double acting

Dimensions

Dimensions specifications
Overall Length165 in
Overall Width102 in
Overall Height121 in
Weight6,076 lb
Tractor PTO Power Required64.4 hp

Tires & Wheels

Tires & Wheels specifications
Standard21.5L x 16.1

Bale Size

Bale Size specifications
Bale Width47 in
Bale Diameter - max73 in
Bale Weight - min1,645 lb

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width66 in
Number of Tines104
Inside Width68 in
Outer tine-to-tine width84 in
Windguard descriptionOptional solid

Wrapping System

Wrapping System specifications
Twine Ball Capacity12
Twine TypeAuto-Tieââ?¬â?? electric actuated

Bale Chamber

Bale Chamber specifications
Number of Belts—
Belt Width7 in
