Massey Ferguson

4609M

Tractor

Displacement
201 in³
Power Measured @
2,200 rpm
Gross Power
89.8 hp
All tractors

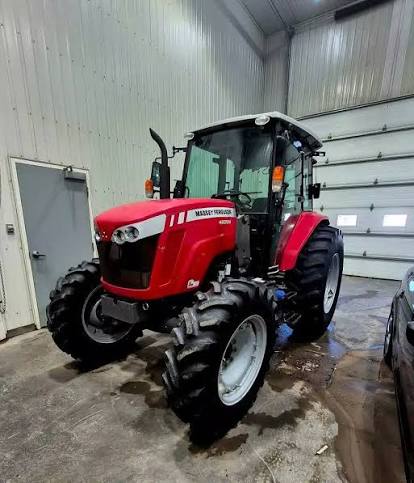

Massey Ferguson 4609M Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity30.4 gal
DEF tank capacity4.2 gal

Engine

Engine specifications
Displacement201 in³
Power Measured @2,200 rpm
Gross Power89.8 hp
Net Power95.0 hp
Number of Cylinders3
AspirationIntercooled turbocharged
Engine MakeAGCO Power
PTO Power72.0 hp

Weights

Weights specifications
Weight 4WD With ROPS6,680 lb
Weight (shipping, 4WD, cab, flange axle)7,088 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.5 gal/min
Number of Remote Control Valves—
Hydraulic System TypeOpen Center system
Pump TypeGear type single pump

Dimensions

Dimensions specifications
Height - Top of Cab102,362 in
Wheelbase90 in
Overall Length154 in
Overall Width81 in
Height - Top of ROPS/FOPS107 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears12

Production

Production specifications
Series4600M Series
Years Manufactured—

Electrical System

Electrical System specifications
Alternator95
Battery12 V

3-Point Hitch

3-Point Hitch specifications
Lift capacity @ 24in. (ASAE)3,307 lb
Extendable lower linksExtendable ball ends

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeElectro-hydraulic engagement
PTO speed540 rpm
OptionalIndependent
PTO Speeds @ Engine rpm1,000
