Massey Ferguson

543

Tractor

Displacement
202 in³
Power Measured @
2,200 rpm
Gross Power
52.0 hp
All tractors

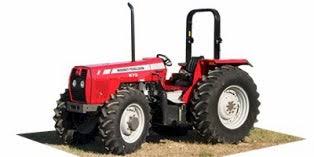

Massey Ferguson 543 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity12.7 gal
3 Point Hitch Lift Capacity @ 24 inches2,711 lb
3 Point Hitch TypeCat I & II

Engine

Engine specifications
Engine Model1103C-33
Displacement202 in³
Power Measured @2,200 rpm
Gross Power52.0 hp
Number of Cylinders3
AspirationNatural
PTO Power45.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.9 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab94 in
Wheelbase77 in
Overall Length11 in
Overall Width66 in
Height - Top of ROPS/FOPS94 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears2

Production

Production specifications
Series500 Series
Years Manufactured2,006 – 2,008
