Massey Ferguson

5475SA

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
125.0 hp
All tractors

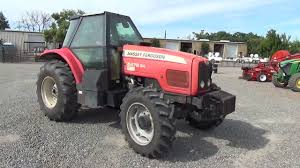

Massey Ferguson 5475SA Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity37.0 gal
3 Point Hitch TypeCat II
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Gross Power125.0 hp
Net Power125.0 hp
AspirationTurbocharged / Air-to-Air
PTO Power105.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.0 gal/min
Number of Remote Control Valves3
Relief Valve Pressure3,050 psi
Relief Valve Setting3,050 psi

Dimensions

Dimensions specifications
Height - Top of ROPS/FOPS95 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears16

Production

Production specifications
Series5400 Series
Years Manufactured2,004 – 2,010
