Massey Ferguson

5480 Tier III

Tractor

Displacement
299 in³
Power Measured @
2,200 rpm
All tractors

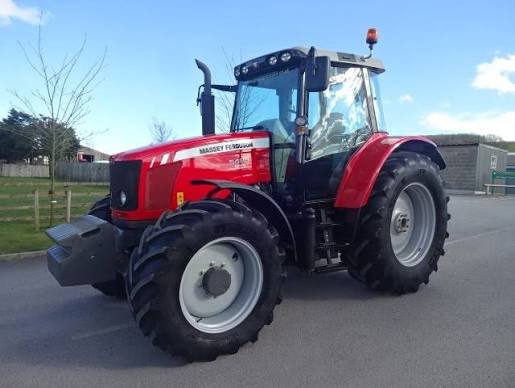

Massey Ferguson 5480 Tier III Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity38.4 gal
3 Point Hitch Lift Capacity @ 24 inches7,818 lb
3 Point Hitch TypeCat II

Engine

Engine specifications
Engine Model49CTA
Displacement299 in³
Power Measured @2,200 rpm
Number of Cylinders4
AspirationTurbo/air to air
PTO Power115.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase106 in
Overall Length14 in
Width Outside Frame101 in
Track Width81 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePower shuttle
Number of Reverse Gears16
