Massey Ferguson

596

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
99.0 hp
All tractors

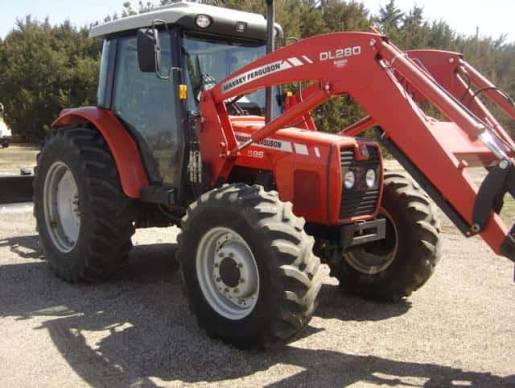

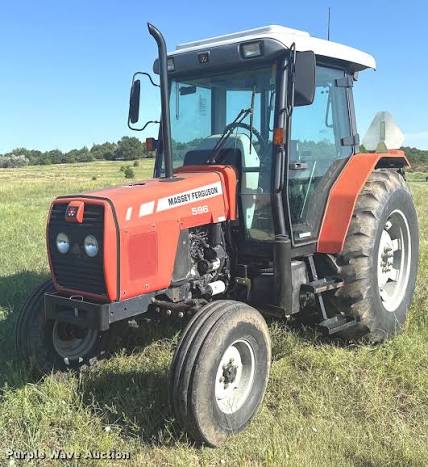

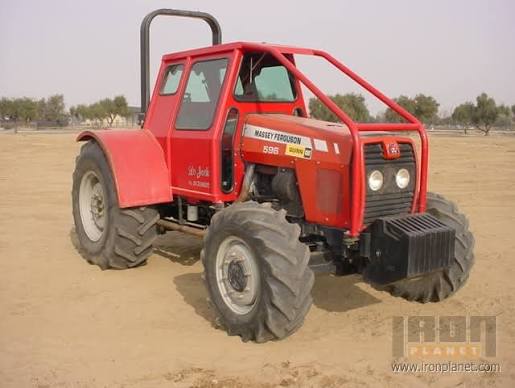

Massey Ferguson 596 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity27.8 gal
3 Point Hitch Lift Capacity @ 24 inches4,199 lb
3 Point Hitch TypeCat II

Engine

Engine specifications
Engine Model1104C-44T
Displacement269 in³
Power Measured @2,200 rpm
Gross Power99.0 hp
Number of Cylinders4
AspirationTurbocharged
PTO Power85.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab101 in
Overall Width84 in
Height - Top of ROPS/FOPS101 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears4

Production

Production specifications
Series500 Series
Years Manufactured2,006 – 2,010
