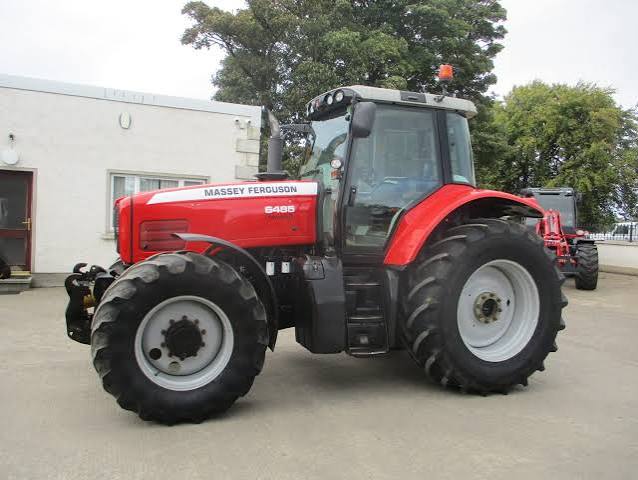

Massey Ferguson
6485
- Operating Weight
- 14,275 lb
- Displacement
- 403 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 152.9 hp
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 14,275 lb |
|---|---|
| Fuel Capacity | 100.2 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,035 lb |
| Tire Size Front - 2wd / 4wd | 18.4R38 |
Engine
| Displacement | 403 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 152.9 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | Sisu |
| PTO Power | 130.1 hp |
| Stroke | 5 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 29.1 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
| Hydraulic System Type | Closed center |
| Maximum operating pressure | 2,901 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 121 in |
| Overall Length | 198 in |
| Overall Width | 120 in |
| Height - Top of ROPS/FOPS | 98 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | Manual / Partial Power-Shift |
| Number of Reverse Gears | 24 |
Tires & Wheels
| Rear Tires Size | 14.9R28 |
|---|
Production
| Series | 6400 Series |
|---|---|
| Years Manufactured | 2,004 – 2,012 |
