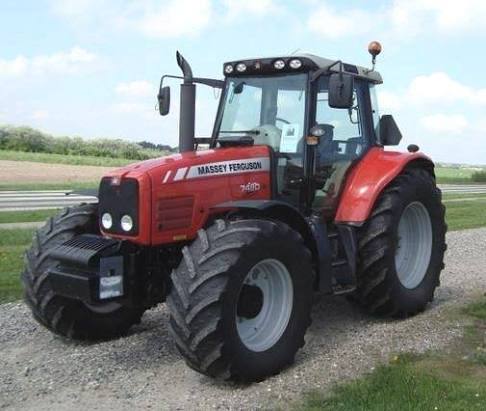

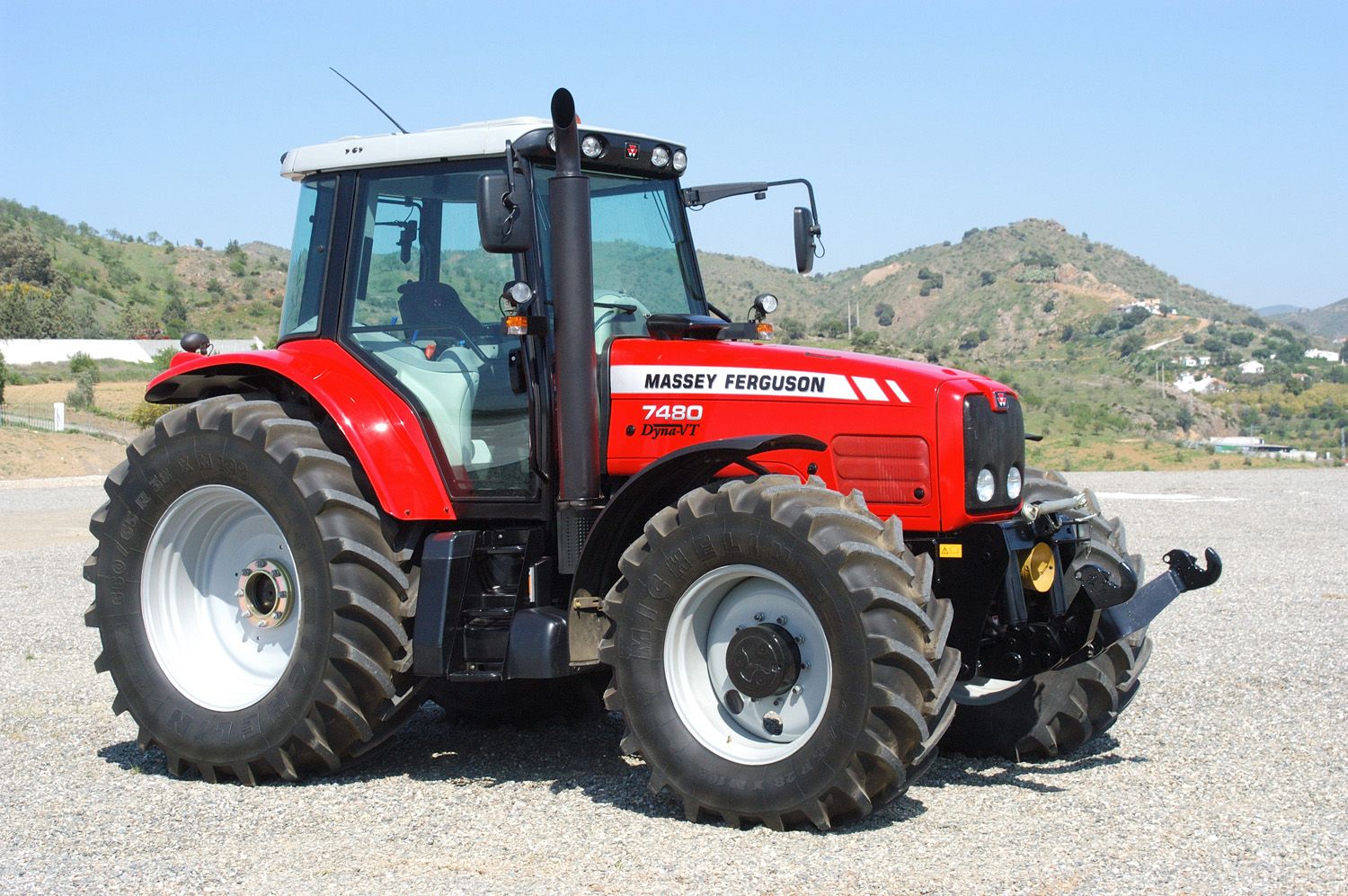

Massey Ferguson
7480
- Operating Weight
- 15,100 lb
- Displacement
- 402 in³
- Power Measured @
- 2,220 rpm
- Gross Power
- 143.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 15,100 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 8,819 lb |
| 3 Point Hitch Type | Cat 3/3N |
| Turning Radius | 62 in |
| Alternator Supplied Amperage | 120 A |
Engine
| Engine Model | 1106D |
|---|---|
| Displacement | 402 in³ |
| Power Measured @ | 2,220 rpm |
| Gross Power | 143.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged - Air-to-Air Aftercooled |
| PTO Power | 110.0 hp |
Hydraulic System
| Pump Flow Capacity | 29.0 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
| Relief Valve Pressure | 2,900 psi |
Dimensions
| Height - Top of Cab | 114 in |
|---|---|
| Wheelbase | 111 in |
| Overall Length | 17 in |
Transmission
| Max Speed | 25.0 mph |
|---|---|
| Transmission Type | Dyna-VT |
Production
| Series | 7400 Series |
|---|---|
| Years Manufactured | 2,004 – 2,012 |
Axles
| Final Drive | Inboard Planetary |
|---|
