Massey Ferguson

7490

Tractor

Operating Weight
15,100 lb
Displacement
402 in³
Power Measured @
2,220 rpm
Gross Power
168.0 hp
All tractors

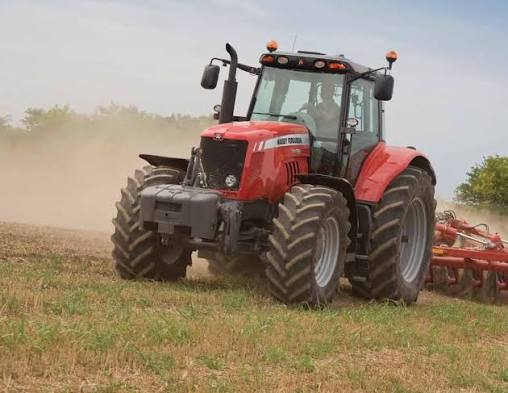

Massey Ferguson 7490 Tractor
1 / 5
Image 1 of 5
Image: triplexheavydmachinery.co.za

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,100 lb
Fuel Capacity93.8 gal
3 Point Hitch Lift Capacity @ 24 inches8,819 lb
3 Point Hitch TypeCat 3/3N
Turning Radius66 in
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine Model66CTA
Displacement402 in³
Power Measured @2,220 rpm
Gross Power168.0 hp
Number of Cylinders6
AspirationTurbocharged Air-to-Air Aftercooled
PTO Power140.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves3
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Height - Top of Cab120 in
Wheelbase119 in
Overall Length18 in

Transmission

Transmission specifications
Max Speed25.0 mph
Transmission TypeDyna-VT

Production

Production specifications
Series7400 Series
Years Manufactured2,004 – 2,012

Axles

Axles specifications
Final DriveInboard Planetary
