Massey Ferguson

8480

Tractor

Displacement
513 in³
Power Measured @
2,200 rpm
Gross Power
290.0 hp
All tractors

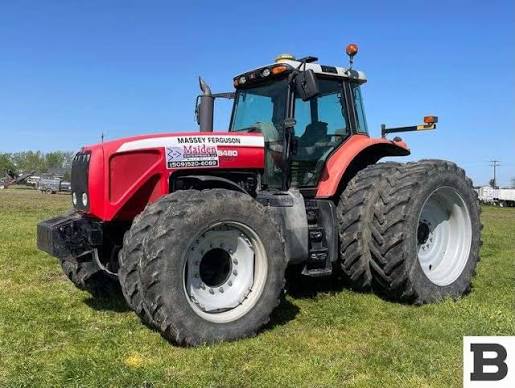

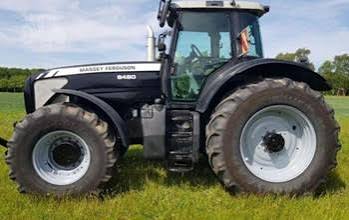

Massey Ferguson 8480 Tractor
1 / 5
Image 1 of 5
Image: tractorchiptuning.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity158.6 gal
3 Point Hitch Lift Capacity @ 24 inches15,604 lb
3 Point Hitch TypeCat III

Engine

Engine specifications
Displacement513 in³
Power Measured @2,200 rpm
Gross Power290.0 hp
Number of Cylinders6
PTO Power240.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity10.4 gal/min
Number of Remote Control Valves4

Dimensions

Dimensions specifications
Height - Top of Cab125 in
Wheelbase121 in
Overall Length17 in
Tire Size18.4R46

Transmission

Transmission specifications
Transmission TypeDyna-VT

Production

Production specifications
Series8400 Series
Years Manufactured2,004 – 2,007
