Massey Ferguson

8690

Tractor

Displacement
513 in³
Power Measured @
2,200 rpm
Gross Power
370.0 hp
All tractors

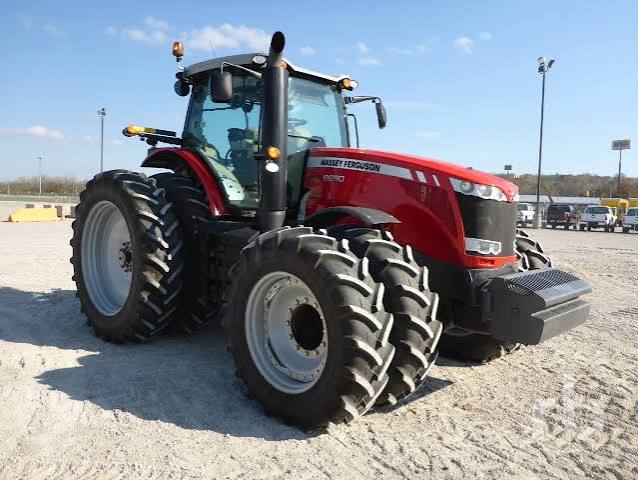

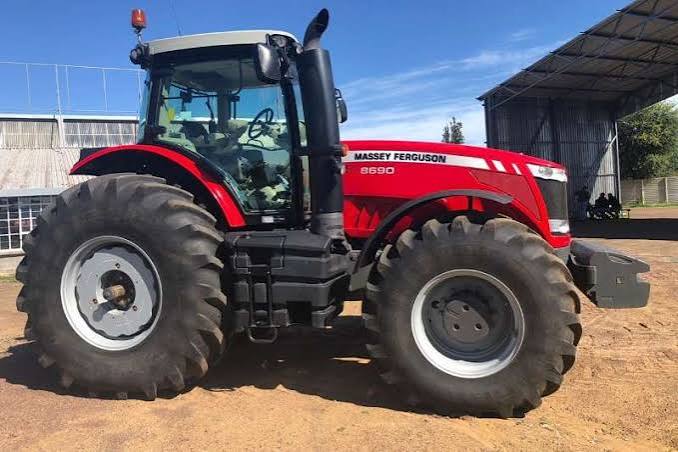

Massey Ferguson 8690 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity167.0 gal
3 Point Hitch Lift Capacity @ 24 inches22,758 lb
DEF tank capacity16.0 gal

Engine

Engine specifications
Displacement513 in³
Power Measured @2,200 rpm
Gross Power370.0 hp
Number of Cylinders6
AspirationTurbocharged with air/air intercooler
PTO Power290.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.5 gal/min
Number of Remote Control Valves2
Hydraulic System TypeClosed Center Load Sensing
Maximum operating pressure2,900 psi

Transmission

Transmission specifications
Max Speed24.9 mph
Transmission TypeDyna-VT with Dynamic Tractor Management

Production

Production specifications
Series8600 Series
Years Manufactured2,011 – 2,013

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
PTO speed1,000 rpm
