Massey Ferguson

9635 Self-Propelled

Mower Conditioner

Operating Weight w/o Attachment
11,180 lb
Max Speed
15.0 mph
Displacement
403 in³
Power
190.0 hp
All mower conditioners/windrowers

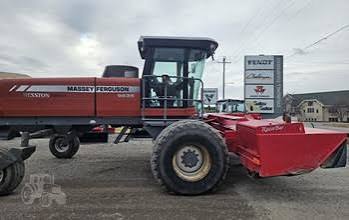

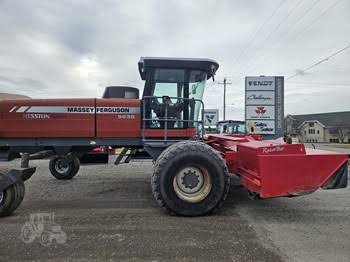

Massey Ferguson 9635 Self-Propelled Mower Conditioner
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment11,180 lb
Fuel Capacity100.0 gal
Front Tire Size23.1 x 26 Turf Tread
Rear Tire Size14L x 16.1

Engine

Engine specifications
Displacement403 in³
Power190.0 hp
Engine Model6.6 CTA

Dimensions

Dimensions specifications
Height - Top of Cab134 in
Wheelbase141 in
Front Wheel Tread Width132 in
Rear Wheel tread Width - max120 in
Rear Wheel Tread Width - min85 in
Length w/ Header267 in

Transmission

Transmission specifications
Max Speed15.0 mph
Final Drive TypeDirect Drive Planetary
Transmission TypeHydrostatic
Number of Reverse Gears2
Number of Forward Gears2
