Massey Ferguson

9695

Combine

Operating Weight w/o Attachment
28,001 lb
Fuel Capacity
229.9 gal
Displacement
513 in³
Power
299.1 hp
All combines/harvesters

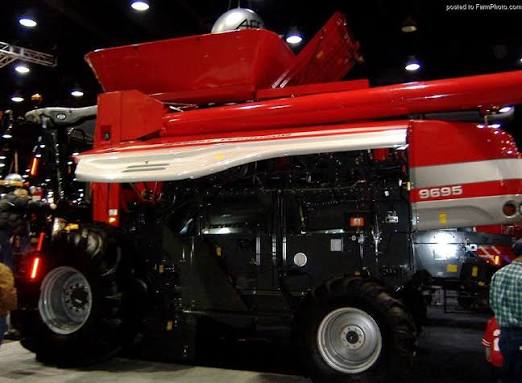

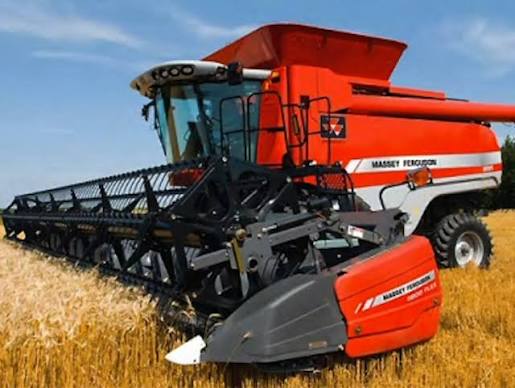

Massey Ferguson 9695 Combine
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment28,001 lb
Fuel Capacity229.9 gal
Number of Gears4
Hydraulic System Fluid Capacity9.7 gal

Engine

Engine specifications
Engine ModelAGCO SISU POWER 84CTA
Displacement513 in³
Number of Cylinders6
Power299.1 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase146 in
Overall Length393 in
Transport Height148 in
Turning Radius253 in
Unloader clearance161 in

Cleaning System

Cleaning System specifications
Total Cleaning Area6,758 in³
Cleaning Fan Speed - High1,350 rpm
Cleaning Fan Speed - Low590 rpm
Chaffer area3,627 in³

Feeding

Feeding specifications
Chain size557
Feeder Reverser ControlElectro-hydraulic
Housing width44 in
Stone or Rock ProtectionStone trap

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,792.8 gal
Unloading Speed4.6 bu/sec
Unloading Discharge Height174 in
Unloading Auger Length292 in
Unloading auger diameter15 in

Separating

Separating specifications
Separating Area2,248 in³

Threshing

Threshing specifications
Rotor Diameter28 in
Rotor Length140 in
Rotor Speed - High970 rpm
Rotor Speed - Low175 rpm
Concave Area2,201 in³
