Massey Ferguson

MF 240

Tractor

Displacement
153 in³
Power Measured @
2,250 rpm
All tractors

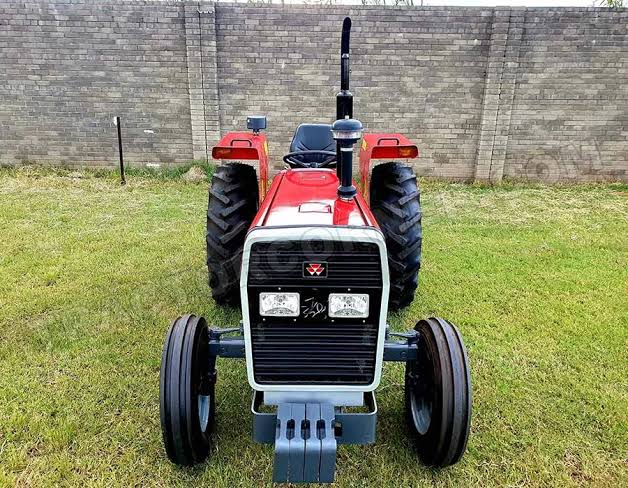

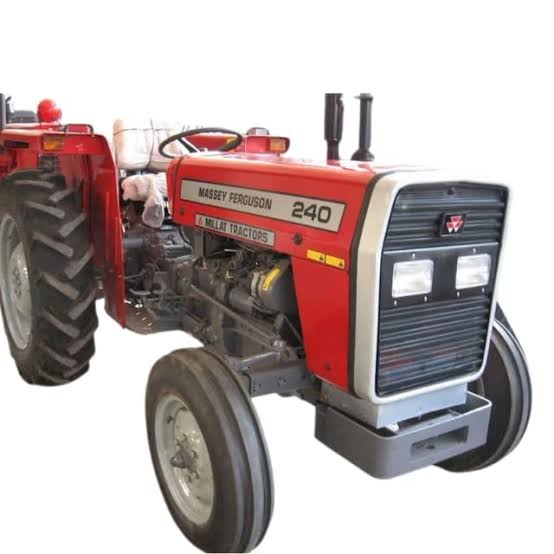

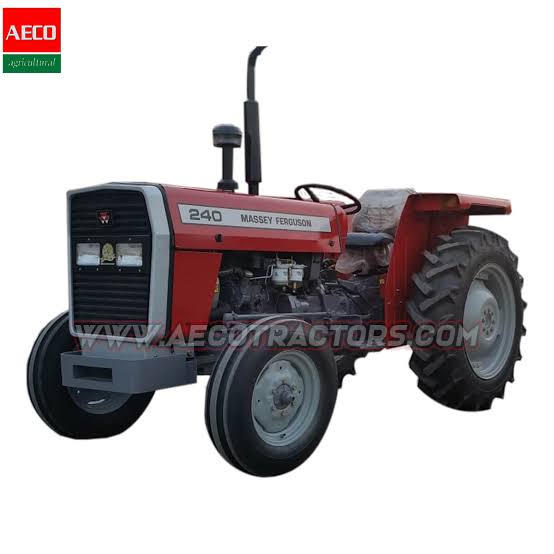

Massey Ferguson MF 240 Tractor
1 / 5
Image 1 of 5
Image: agroasiatractors.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
3 Point Hitch Lift Capacity @ 24 inches3,120 lb
Turning Radius122 in
Alternator Supplied Amperage32 A
Tire Size Front - 2wd / 4wd6.00-16 6PR
Cooling System Fluid Capacity2.7 gal

Engine

Engine specifications
Displacement153 in³
Power Measured @2,250 rpm
Number of Cylinders3
Torque Measured @1,300 rpm
Max Torque124 lb-ft
PTO Power44.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.3 gal/min
Relief Valve Pressure2,785 psi
Relief Valve Setting2,553 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase76 in
Overall Width72 in
Tire SizeFront 6.00 -16 (6 PR) Rear 12.4/11-28 (6PR)
Width Outside Frame66 in
Height86 in

Transmission

Transmission specifications
Max Speed17.8 mph
Number of Forward Gears8
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size13.6-28 6PR
