Massey Ferguson

MF 2430 ST

Tractor

Operating Weight
6,724 lb
Displacement
201 in³
Power Measured @
2,500 rpm
Gross Power
66.0 hp
All tractors

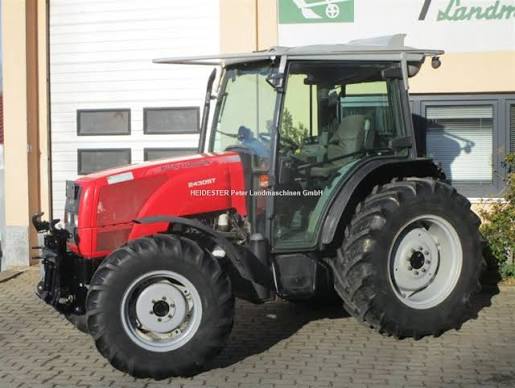

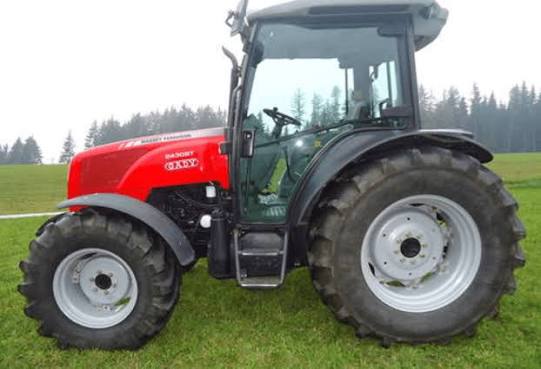

Massey Ferguson MF 2430 ST Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,724 lb
Fuel Capacity23.8 gal
3 Point Hitch Lift Capacity @ 24 inches4,630 lb

Engine

Engine specifications
Engine Model800 Series
Displacement201 in³
Power Measured @2,500 rpm
Gross Power66.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab95 in
Wheelbase85 in
Overall Length13 in
Tire Sizefront 12.4R20 rear 14.9R30
Width Outside Frame74 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears15
Transmission Typesynchro shuttle
Number of Reverse Gears15
