Massey Ferguson

MF 260

Tractor

Operating Weight
4,233 lb
Power Measured @
2,250 rpm
Gross Power
60.0 hp
All tractors

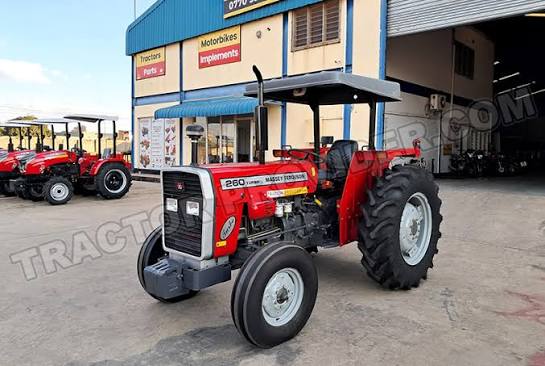

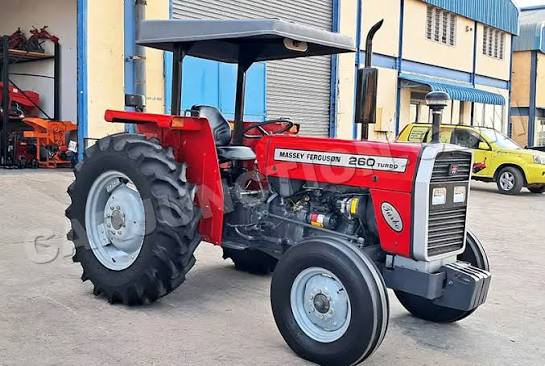

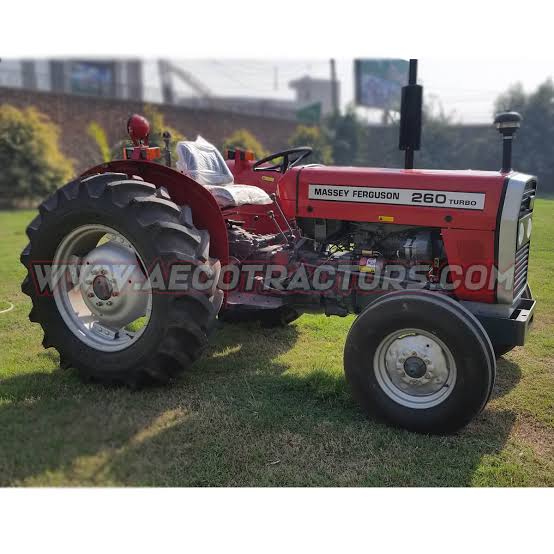

Massey Ferguson MF 260 Tractor
1 / 5
Image 1 of 5
Image: agroasiatractors.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,233 lb
Fuel Capacity12.6 gal
Cooling System Fluid Capacity2.7 gal
Hydraulic System Fluid Capacity8.8 gal

Engine

Engine specifications
Engine ModelT3.1524
Power Measured @2,250 rpm
Gross Power60.0 hp
Number of Cylinders3
AspirationTurbocharged
PTO Power48.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity30.7 gal/min
Relief Valve Pressure2,785 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase76 in
Overall Length11 in
Tire SizeFront 6.00 -16 (6 PR) Rear 12.4/11-28(6PR)
Width Outside Frame66 in
Track Width49 in

Transmission

Transmission specifications
Max Speed17.8 mph
Number of Forward Gears8
Transmission TypeSliding Spur
Number of Reverse Gears2
