Massey Ferguson

MF 290

Tractor

Operating Weight
5,626 lb
Displacement
248 in³
Power Measured @
2,200 rpm
Gross Power
82.0 hp
All tractors

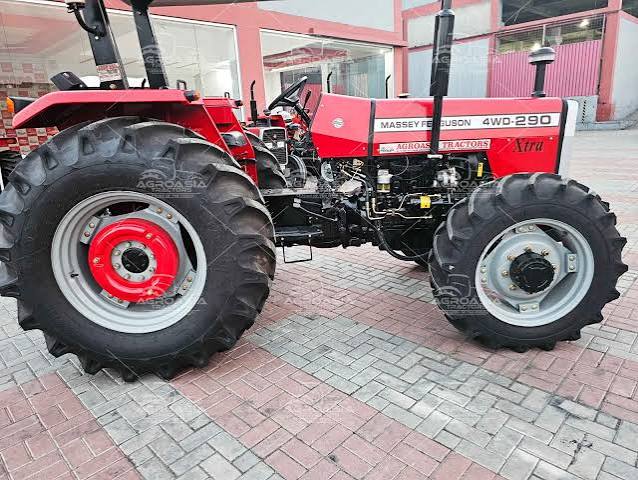

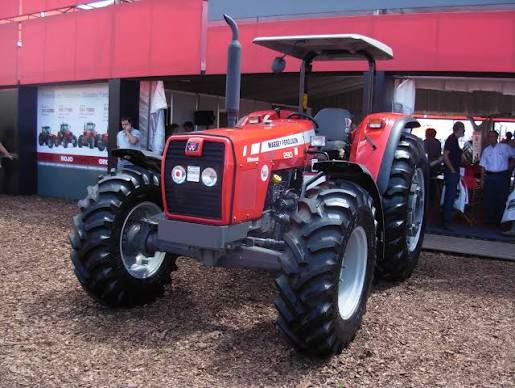

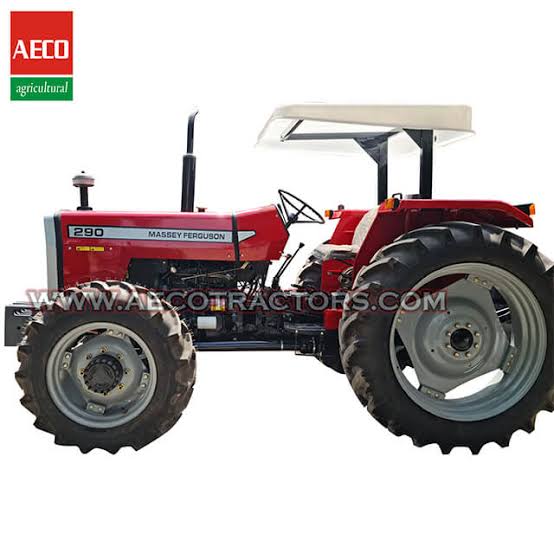

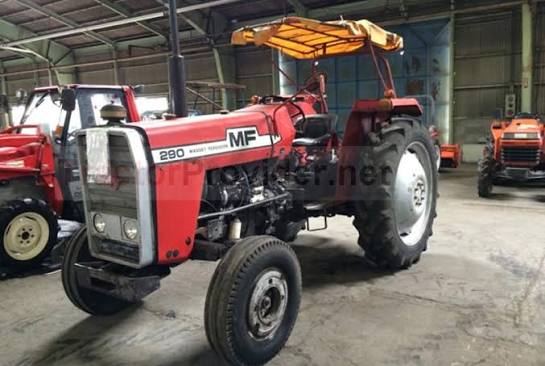

Massey Ferguson MF 290 Tractor
1 / 5
Image 1 of 5
Image: agroasiatractors.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,626 lb
Fuel Capacity23.8 gal
3 Point Hitch Lift Capacity @ 24 inches5,049 lb
Turning Radius169 in
Alternator Supplied Amperage45 A
Tire Size Front - 2wd / 4wd7.50-16 6PR
Cooling System Fluid Capacity3.8 gal
Hydraulic System Fluid Capacity10.6 gal

Engine

Engine specifications
Engine Model4.41
Displacement248 in³
Power Measured @2,200 rpm
Gross Power82.0 hp
Torque Measured @1,600 rpm
Max Torque209 lb-ft
PTO Power75.7 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.5 gal/min
Relief Valve Setting3,002 psi

Dimensions

Dimensions specifications
Wheelbase91 in
Overall Length13 in
Overall Width81 in
Height100 in

Transmission

Transmission specifications
Number of Forward Gears8
Transmission Type8 speed sliding spur
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4-30 6PR
