Massey Ferguson

MF 3425

Tractor

Displacement
201 in³
Power Measured @
2,200 rpm
Gross Power
64.0 hp
All tractors

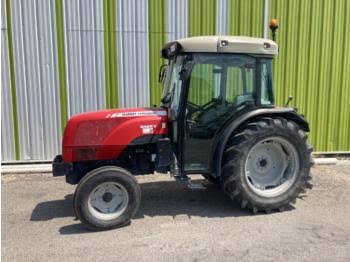

Massey Ferguson MF 3425 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity11.9 gal
3 Point Hitch Lift Capacity @ 24 inches5,732 lb
Tire Size Front - 2wd / 4wd6.50R16

Engine

Engine specifications
Engine Model1103C-33T
Displacement201 in³
Power Measured @2,200 rpm
Gross Power64.0 hp
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque199 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.7 gal/min
Relief Valve Pressure2,611 psi
Relief Valve Setting2,611 psi

Dimensions

Dimensions specifications
Height - Top of Cab88 in
Overall Length12 in
Overall Width44 in
Tire Sizefront 6.50R16 rear 11.2R28
Width Outside Frame44 in
Height - Top of ROPS/FOPS89 in
Height50 in

Transmission

Transmission specifications
Number of Forward Gears20
Transmission Typesynchro with underdrive
Number of Reverse Gears10

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size11.2R28
