Massey Ferguson

MF 3435

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
80.0 hp
All tractors

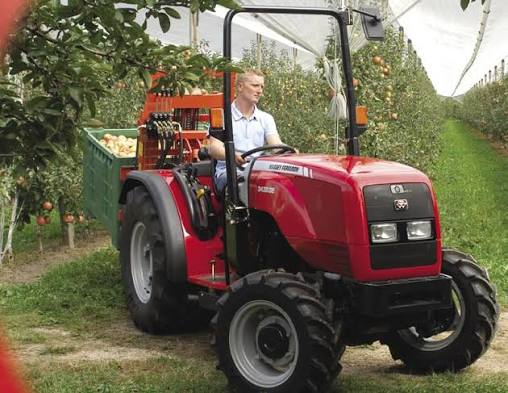

Massey Ferguson MF 3435 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity11.9 gal
3 Point Hitch Lift Capacity @ 24 inches5,732 lb
Tire Size Front - 2wd / 4wd6.50R16

Engine

Engine specifications
Engine Model1104C-44
Displacement269 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Aspirationnatural
Torque Measured @1,400 rpm
Max Torque217 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.7 gal/min
Relief Valve Pressure2,611 psi
Relief Valve Setting2,611 psi

Dimensions

Dimensions specifications
Height - Top of Cab88 in
Wheelbase83 in
Overall Length12 in
Overall Width40 in
Tire Sizefront 6.50R16 rear 11.2R28
Width Outside Frame40 in
Height - Top of ROPS/FOPS89 in
Height50 in

Transmission

Transmission specifications
Number of Forward Gears20
Transmission Typesynchro with underdrive
Number of Reverse Gears10

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size11.2R28
