Massey Ferguson

MF 3640

Tractor

Displacement
363 in³
Power Measured @
2,400 rpm
All tractors

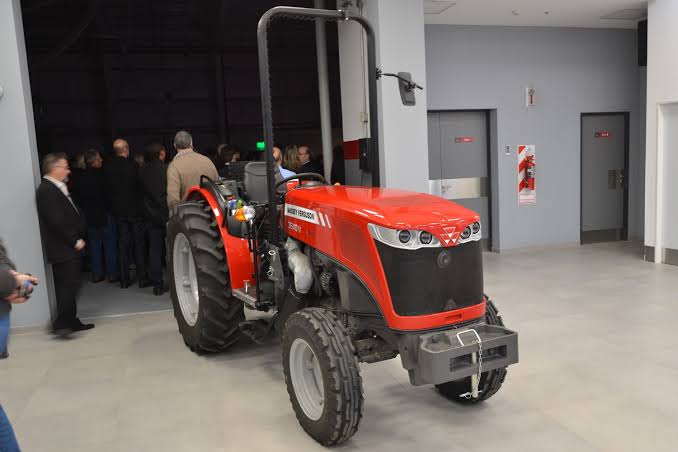

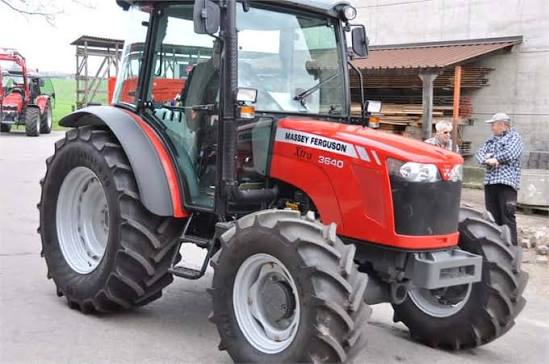

Massey Ferguson MF 3640 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity87.2 gal
Transmission Typemechanical syncromesh
Number of Gears—

Engine

Engine specifications
Engine Model1006-6
Displacement363 in³
Power Measured @2,400 rpm
Power123.0 hp

Dimensions

Dimensions specifications
Overall Length323 in
Width Over Tires125 in
Height to Top of Isomount Cab133 in

Cleaning System

Cleaning System specifications
Cleaning Fan Speed - High2,075 rpm
Total Cleaning Area4,805 in³
Cleaning Fan Speed - Low974 rpm

Feeding

Feeding specifications
Conveyor Speed60 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity1,188.8 gal
Unloading Speed1.3 bu/sec

Separating

Separating specifications
Separating Area7,750 in³
Separator Type4 straw walkers closed bottom

Threshing

Threshing specifications
Concave Area884 in³
Rotor Diameter22 in
Rotor Length43 in
Rotor Speed - High1,000 rpm
Rotor Speed - Low365 rpm
