Massey Ferguson
Fendt
209 VA
Tractor
19 specifications
Massey Ferguson

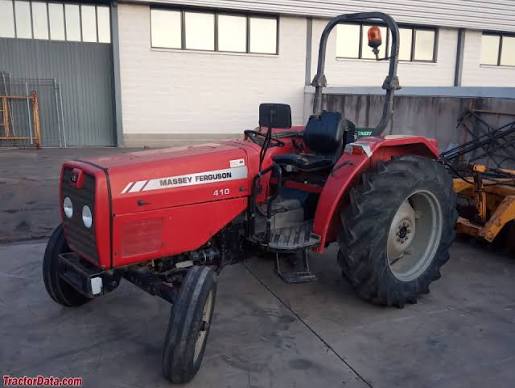

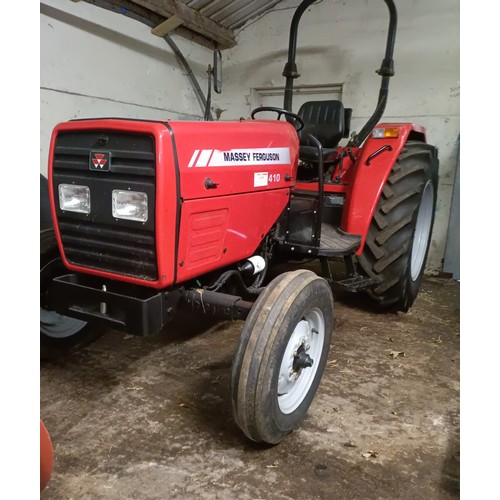

MF 410
- Operating Weight
- 5,016 lb
- Displacement
- 201 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 55.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 5,016 lb |
|---|---|
| Fuel Capacity | 12.7 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 3,946 lb |
| Turning Radius | 128 in |
| Tire Size Front - 2wd / 4wd | 6.00-16 6PR |
| Hydraulic System Fluid Capacity | 11.1 gal |
Engine
| Engine Model | 1103C-33 |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 55.0 hp |
| Aspiration | natural |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 164 lb-ft |
Hydraulic System
| Pump Flow Capacity | 13.9 gal/min |
|---|---|
| Relief Valve Setting | 2,538 psi |
Dimensions
| Wheelbase | 81 in |
|---|---|
| Overall Length | 11 in |
| Height - Top of ROPS/FOPS | 95 in |
| Height | 72 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Transmission Type | partial synchro |
| Number of Reverse Gears | 2 |
Tires & Wheels
| Rear Tires Size | 13.6-28 6PR |
|---|
