Massey Ferguson

MF 435

Tractor

Displacement
250 in³
Power Measured @
2,200 rpm
Gross Power
72.0 hp
All tractors

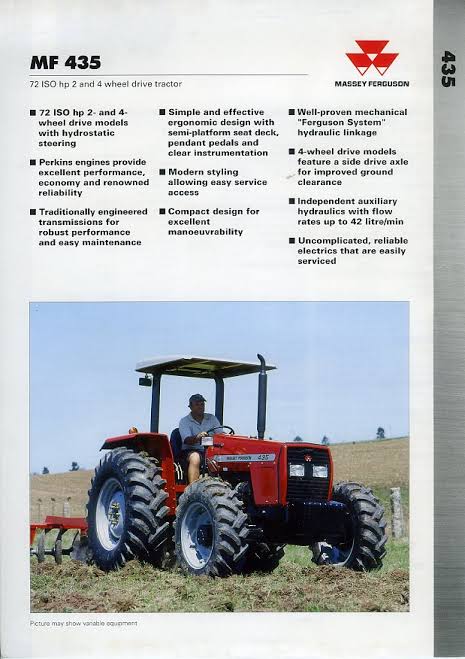

Massey Ferguson MF 435 Tractor
1 / 5
Image 1 of 5
Image: justdial.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.9 gal
3 Point Hitch Lift Capacity @ 24 inches5,512 lb
Tire Size Front - 2wd / 4wd7.50-16

Engine

Engine specifications
Engine ModelP4000
Displacement250 in³
Power Measured @2,200 rpm
Gross Power72.0 hp
Aspirationnatural
Torque Measured @1,400 rpm
Max Torque197 lb-ft
PTO Power62.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.5 gal/min
Relief Valve Pressure3,046 psi
Relief Valve Setting3,046 psi

Dimensions

Dimensions specifications
Height - Top of Cab102 in
Tire Sizefront 12.4-24 rear 18.4-30
Height - Top of ROPS/FOPS102 in
Height97 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4-30
