Massey Ferguson

MF 435N

Tractor

Displacement
250 in³
Power Measured @
2,200 rpm
Gross Power
72.0 hp
All tractors

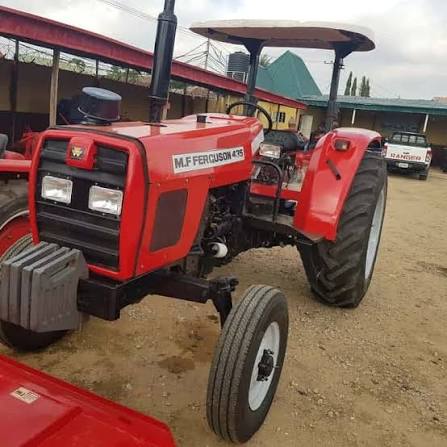

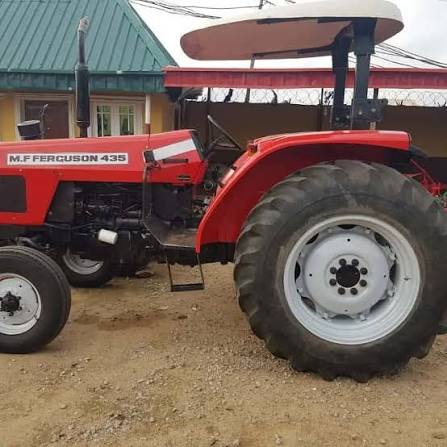

Massey Ferguson MF 435N Tractor
1 / 5
Image 1 of 5
Image: farmac-inc.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.9 gal
3 Point Hitch Lift Capacity @ 24 inches5,512 lb
Tire Size Front - 2wd / 4wd6.00-16

Engine

Engine specifications
Engine ModelP4000
Displacement250 in³
Power Measured @2,200 rpm
Gross Power72.0 hp
Aspirationnatural
Torque Measured @1,400 rpm
Max Torque197 lb-ft
PTO Power62.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity4.5 gal/min
Relief Valve Pressure3,046 psi
Relief Valve Setting3,046 psi

Dimensions

Dimensions specifications
Wheelbase85 in
Overall Length12 in
Tire Sizefront 8.00-18 rear 14.9-24

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9-24
