Massey Ferguson

MF 4707

Tractor

Displacement
201 in³
Power Measured @
2,200 rpm
Gross Power
70.0 hp
All tractors

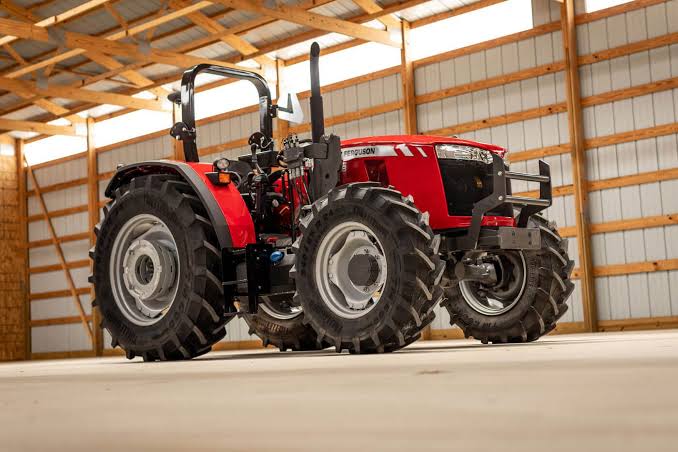

Massey Ferguson MF 4707 Tractor
1 / 5
Image 1 of 5
Image: extremesportsatv.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity27.7 gal
DEF tank capacity2.6 gal

Engine

Engine specifications
Displacement201 in³
Power Measured @2,200 rpm
Gross Power70.0 hp
Number of Cylinders3
AspirationIntercooled turbocharged
Engine MakeAGCO Power
PTO Power58.0 hp

Weights

Weights specifications
Weight 4WD With ROPS7,125 lb
Weight 2WD with ROPS6,444 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.7 gal/min
Number of Remote Control Valves—
Hydraulic System TypeOpen Center system
Pump TypeGear type single pump

Dimensions

Dimensions specifications
Wheelbase89 in
Overall Width61 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears8

Electrical System

Electrical System specifications
Alternator80
Battery12 V

3-Point Hitch

3-Point Hitch specifications
Lift capacity @ 24in. (ASAE)4,850 lb

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeElectro-hydraulic shuttle lever
PTO speed540 rpm
OptionalIndependent
PTO Speeds @ Engine rpm1,000
