Massey Ferguson

MF 5460

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
115.0 hp
All tractors

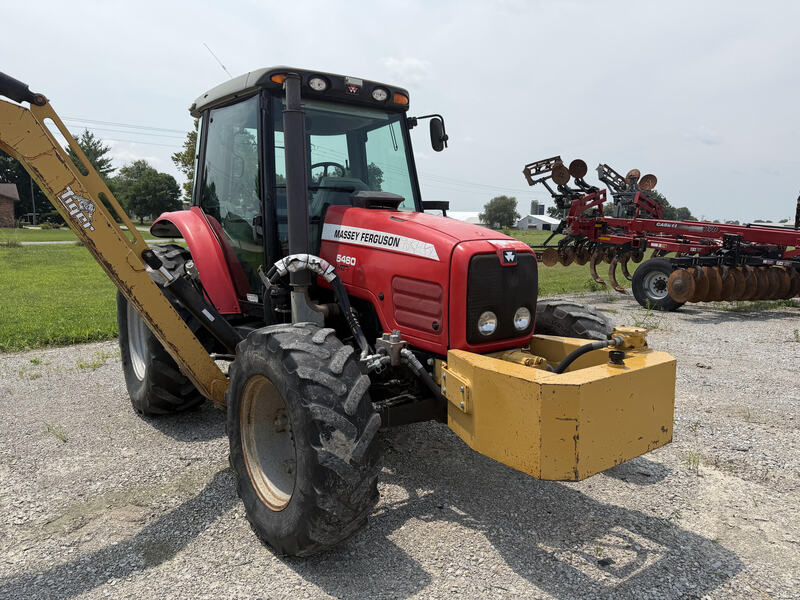

Massey Ferguson MF 5460 Tractor
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity39.7 gal
3 Point Hitch Lift Capacity @ 24 inches11,023 lb
Tire Size Front - 2wd / 4wd11.00-16

Engine

Engine specifications
Engine Model1104C-44TA
Displacement269 in³
Power Measured @2,200 rpm
Gross Power115.0 hp
Aspirationturbocharged intercooled
Torque Measured @1,400 rpm
Max Torque347 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab109 in
Wheelbase101 in
Overall Length14 in
Tire Sizefront 13.6R28 rear 16.9R38
Height - Top of ROPS/FOPS109 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Typespeedshift gearbox
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9R38
