Massey Ferguson

MF 6475

Tractor

Displacement
403 in³
Power Measured @
2,200 rpm
All tractors

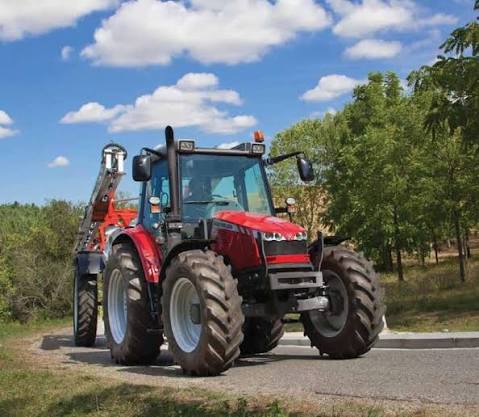

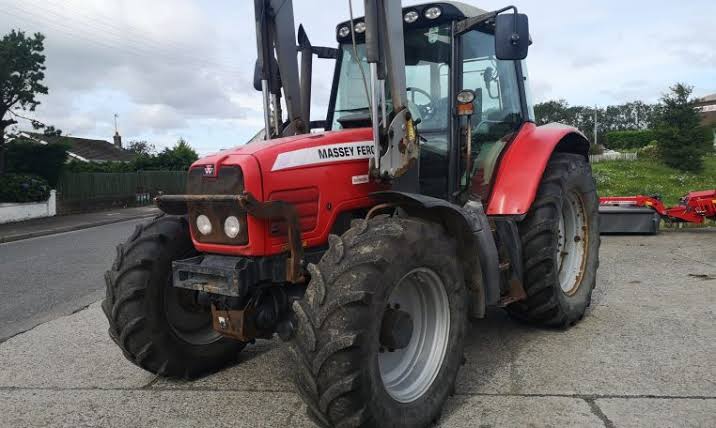

Massey Ferguson MF 6475 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity71.4 gal
3 Point Hitch Lift Capacity @ 24 inches9,392 lb
3 Point Hitch TypeCat 2
Turning Radius187 in
Alternator Supplied Amperage120 A
Tire Size Front - 2wd / 4wd10.00x16

Engine

Engine specifications
Engine Model1106D
Displacement403 in³
Power Measured @2,200 rpm
Aspirationwastegate
PTO Power110.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Number of Remote Control Valves2
Relief Valve Pressure2,901 psi
Relief Valve Setting2,901 psi

Dimensions

Dimensions specifications
Height - Top of Cab114 in
Wheelbase111 in
Overall Length17 in
Overall Width86 in
Tire Sizefront 14.9R28 rear 18.4R38
Width Outside Frame86 in
Height - Top of ROPS/FOPS114 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears24
Transmission TypeDyna-6
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R38

Axles

Axles specifications
Final Driveplanetary
