Massey Ferguson

MF 6495

Tractor

Displacement
403 in³
Power Measured @
2,200 rpm
All tractors

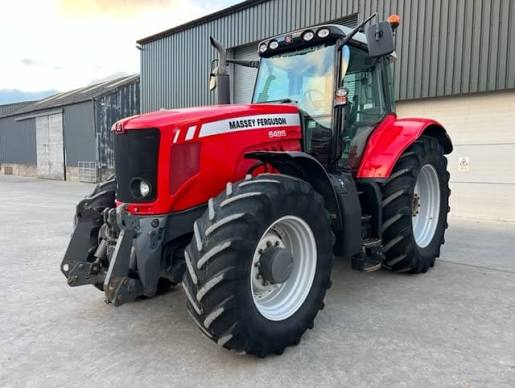

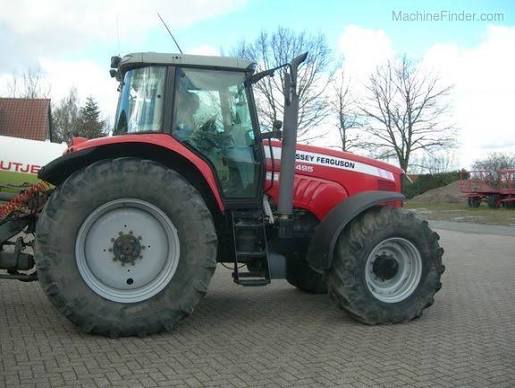

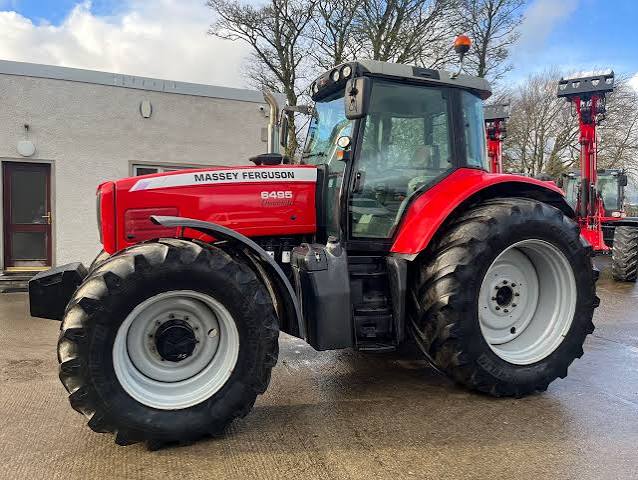

Massey Ferguson MF 6495 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity93.8 gal
3 Point Hitch Lift Capacity @ 24 inches16,491 lb
3 Point Hitch TypeCat 3/3N
Turning Radius199 in
Alternator Supplied Amperage120 A
Tire Size Front - 2wd / 4wd11.00x16

Engine

Engine specifications
Engine Model66 CTA
Displacement403 in³
Power Measured @2,200 rpm
Aspirationwastegate
PTO Power155.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Number of Remote Control Valves3
Relief Valve Pressure2,901 psi
Relief Valve Setting2,901 psi

Dimensions

Dimensions specifications
Height - Top of Cab120 in
Wheelbase119 in
Overall Length18 in
Overall Width93 in
Tire Sizefront 14.9R30 rear 18.4R42
Width Outside Frame93 in
Height - Top of ROPS/FOPS120 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears24
Transmission TypeDyna-6
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R42

Axles

Axles specifications
Final Driveplanetary
