Mccormick
Fendt
209 VA
Tractor
19 specifications
Mccormick
C60 Max
- Operating Weight
- 6,437 lb
- Displacement
- 201 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 58.5 hp
1 / 5

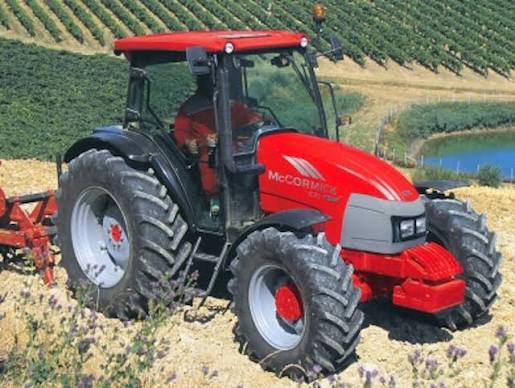

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 6,437 lb |
|---|---|
| Fuel Capacity | 27.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 5,732 lb |
| 3 Point Hitch Type | Cat 2 |
| Turning Radius | 158 in |
Engine
| Engine Model | 1103C-33 |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 58.5 hp |
| Number of Cylinders | 3 |
Hydraulic System
| Pump Flow Capacity | 21.8 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Pressure | 2,611 psi |
Dimensions
| Height - Top of Cab | 97 in |
|---|---|
| Wheelbase | 86 in |
| Overall Length | 13 in |
| Tire Size | front 11.2-24 rear 12.4-36 |
| Width Outside Frame | 65 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | mec. rev. shuttle |
| Number of Reverse Gears | 12 |
Axles
| Final Drive | epicyclic |
|---|
