Mccormick

CN50

Tractor

Operating Weight
5,203 lb
Displacement
153 in³
Power Measured @
2,600 rpm
Gross Power
47.0 hp
All tractors

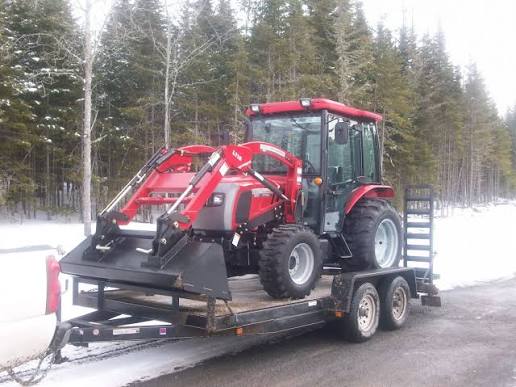

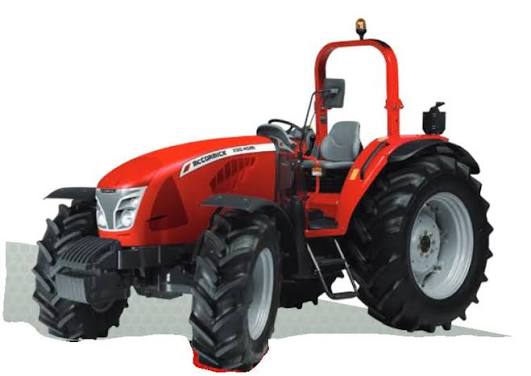

Mccormick CN50 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,203 lb
Fuel Capacity13.5 gal
3 Point Hitch Lift Capacity @ 24 inches3,258 lb
3 Point Hitch Type1
Turning Radius110 in
Alternator Supplied Amperage45 A
Operating Voltage12 V

Engine

Engine specifications
Displacement153 in³
Power Measured @2,600 rpm
Gross Power47.0 hp
Number of Cylinders4
PTO Power44.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity9.1 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab96 in
Wheelbase76 in
Overall Length11 in
Width Outside Frame52 in

Transmission

Transmission specifications
Max Speed17.3 mph
Number of Forward Gears16
Transmission Typesynchro shuttle
Number of Reverse Gears16
