Mccormick

CT28HST

Tractor

Operating Weight
2,646 lb
Displacement
92 in³
Power Measured @
2,600 rpm
Gross Power
28.0 hp
All tractors

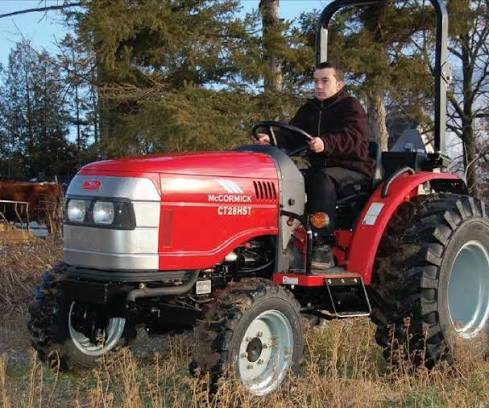

Mccormick CT28HST Tractor
1 / 5
Image 1 of 5
Image: cabdepot.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,646 lb
Fuel Capacity8.5 gal
3 Point Hitch Lift Capacity @ 24 inches2,619 lb
3 Point Hitch Type1
Turning Radius101 in
Alternator Supplied Amperage50 A
Operating Voltage12 V

Engine

Engine specifications
Displacement92 in³
Power Measured @2,600 rpm
Gross Power28.0 hp
Number of Cylinders4
PTO Power22.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.0 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab91 in
Wheelbase66 in
Overall Length10 in

Transmission

Transmission specifications
Max Speed15.8 mph
Transmission TypeHST 3 range
