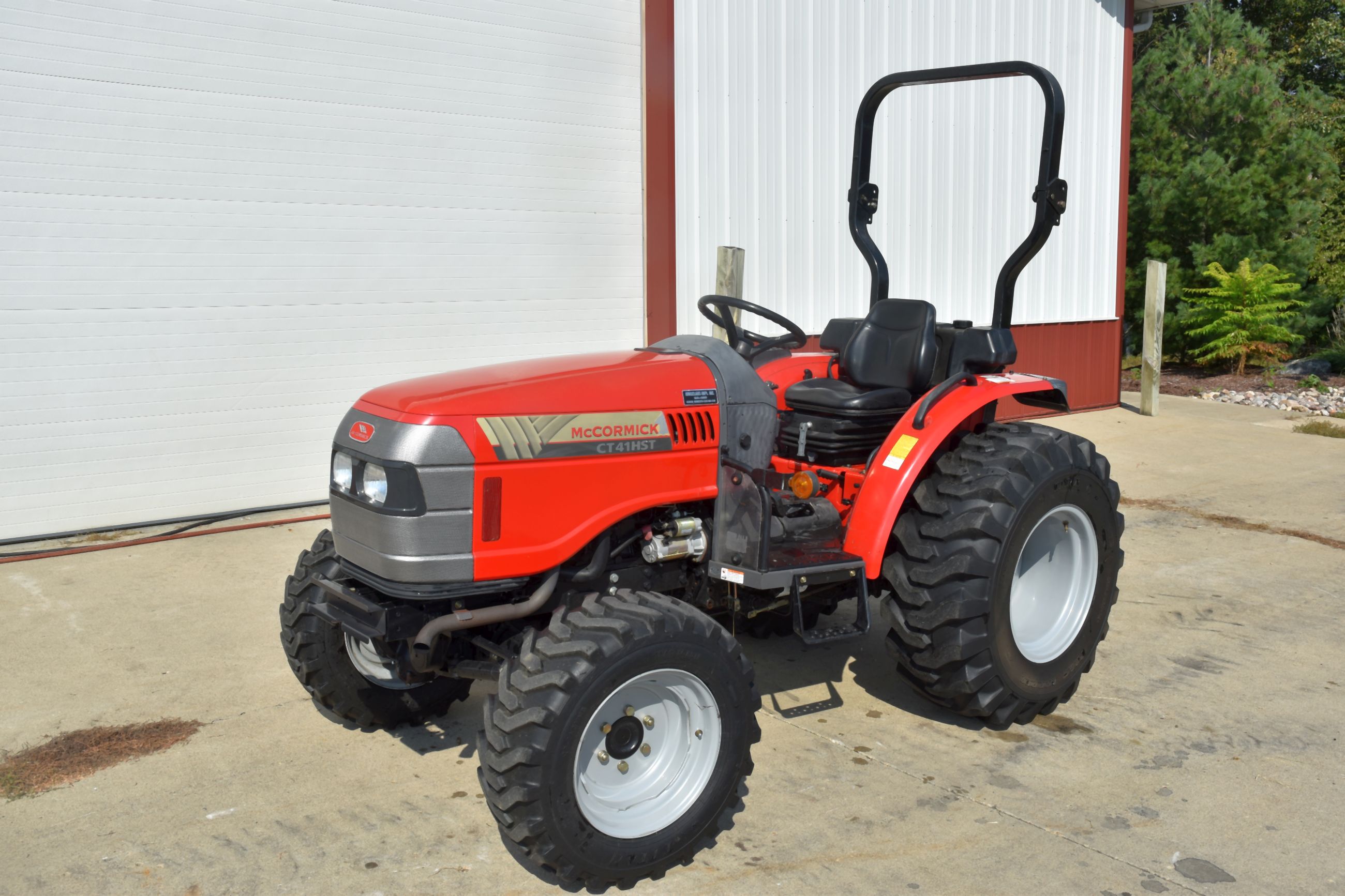

Mccormick
CT41HST
- Operating Weight
- 3,583 lb
- Displacement
- 141 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 41.0 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 3,583 lb |
|---|---|
| Fuel Capacity | 10.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,756 lb |
| 3 Point Hitch Type | 1 |
| Turning Radius | 101 in |
| Alternator Supplied Amperage | 50 A |
| Operating Voltage | 12 V |
Engine
| Displacement | 141 in³ |
|---|---|
| Power Measured @ | 2,600 rpm |
| Gross Power | 41.0 hp |
| Number of Cylinders | 4 |
| PTO Power | 34.0 hp |
Hydraulic System
| Pump Flow Capacity | 8.2 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 70 in |
| Overall Length | 11 in |
Transmission
| Max Speed | 15.2 mph |
|---|---|
| Transmission Type | HST 3 range |
