Mccormick

CX75

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
73.0 hp
All tractors

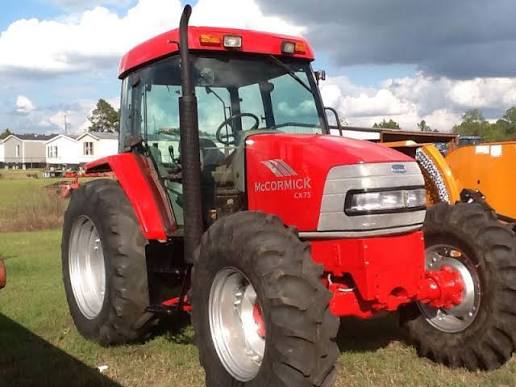

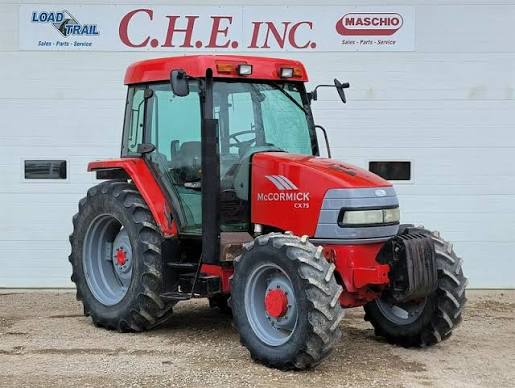

Mccormick CX75 Tractor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity41.0 gal
3 Point Hitch Lift Capacity @ 24 inches4,497 lb
Tire Size Front - 2wd / 4wd7.50-16

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Gross Power73.0 hp
Number of Cylinders4
Max Torque217 lb-ft
Torque Rise25.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.9 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Overall Length14 in
Overall Width85 in
Tire Sizefront 11.2R24 rear 13.6R36
Width Outside Frame85 in
Height - Top of ROPS/FOPS101 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears24
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size13.6R36
