Nagano

NS55

Mini Excavator

Operating Weight
11,795 lb
Max Digging Depth
149 in
Net Power
43.2 hp
All mini excavators

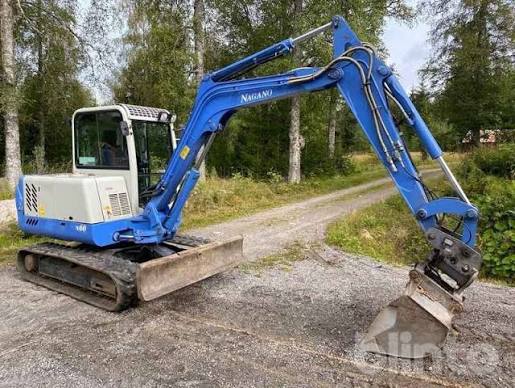

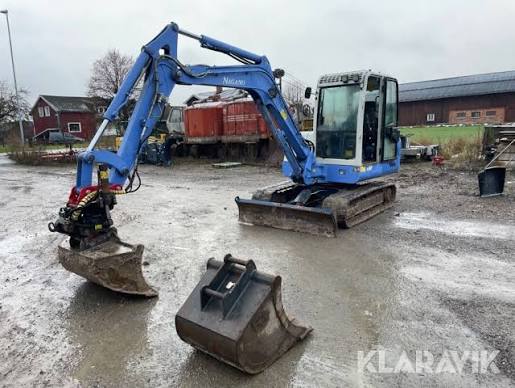

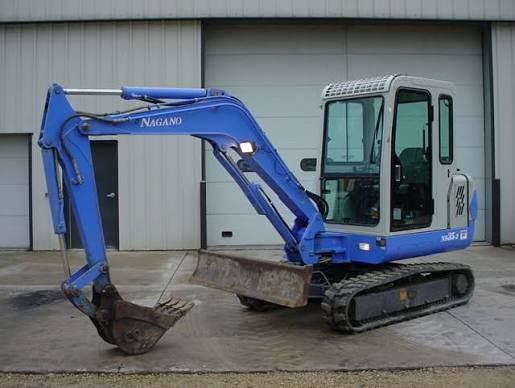

Nagano NS55 Mini Excavator
1 / 5
Image 1 of 5
Image: marketbook.com.gh

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,795 lb
Hydraulic Pump Flow Capacity15.9 gal/min

Engine

Engine specifications
Displacement149 in³
Power Measured @2,400 rpm
Net Power43.2 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Tail Swing Radius61 in
Width to Outside of Tracks73 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.7 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth149 in
Max Reach Along Ground234 in
Max Vertical Wall Digging Depth115 in
Max Loading Height151 in
Shipping Length of Unit229 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
