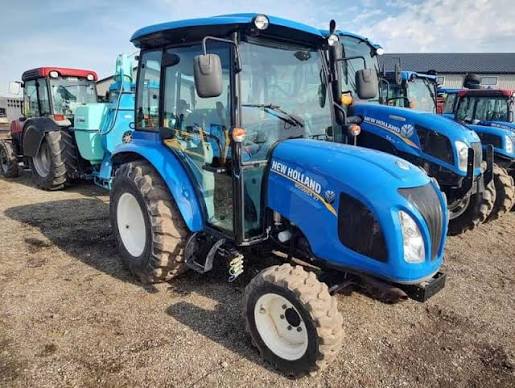

New HollandNew Holland
TC35
Tractor
21 specifications
1 / 5
Image 1 of 5
Specifications
34 data points
Engine
| Engine Model | Boomer37 |
|---|---|
| Displacement | 92 in³ |
| Number of Cylinders | 3 |
| Aspiration | Turbo |
| Alternator | 85 A |
| Air cleaner | Replaceable dry element |
| Rated Speed | 2,600 rpm |
| Fuel tank | 12.5 gal |
Weights
| Weight (Gear) | 3,576 lb |
|---|---|
| Weight (HST) | 2,871 lb |
Hydraulic System
| Remote control valves available | Optional |
|---|---|
| Implement hydraulic flow | 8.2 gal/min |
| Steering hydraulic flow Gear | 4.2 gal/min |
| Steering hydraulic flow HST | 5.3 gal/min |
| Steering Type | Hydrostatic |
| 3-point lift capacity @ ball ends | 1,808 lb |
Dimensions
| Height - Top of ROPS/FOPS | 1,112 in |
|---|---|
| Length | 119 in |
| Width | 66 in |
Transmission
| Transmission Type | Mechanical / Hydrostatic (12x12 / HST+3 range) |
|---|---|
| Brakes | Wet Multi Disc |
| shuttle type | Synchro |
| Gear type | Synchro |
| Maximum forward speed, Gear | 14.2 mph |
| Rear diff. lock engagement | Mechanical |
| Maximum forward speedHST | 14.8 mph |
Production
| Series | Boomer Series |
|---|---|
| Years Manufactured | 2,014 – 2,016 |
Power Take-Off (PTO)
| PTO speed | 540 rpm |
|---|---|
| PTO type | Independent with electro-hydraulic engagement |
| PTO Speed Mid | 2,000 rpm |
| PTO (HST) | 28.1 hp |
| Mid-PTO Speed | 2,000 rpm |
| PTO (Gear) | 29.6 hp |
