New Holland

D75 WT

Crawler Dozer

Operating Weight
18,900 lb
Max Speed - Forward
6.0 mph
Gross Power
80.0 hp
Net Power
75.0 hp
All crawler dozers

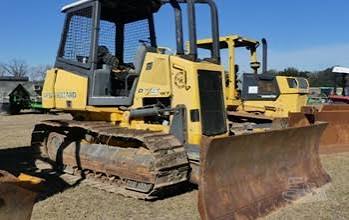

New Holland D75 WT Crawler Dozer
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,900 lb
Fuel Capacity50.1 gal
Cooling System Fluid Capacity5.0 gal
Final Drives Fluid Capacity3.8 gal
Engine Oil Capacity3.6 gal
Hydraulic Fluid Capacity20.0 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model445T/M2
Displacement275 in³
Power Measured @2,000 rpm
Gross Power80.0 hp
Net Power75.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,400 rpm
Max Torque266 lb-ft
MakeNew Holland

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.3 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab109 in
Length of Track on Ground89 in
Width Over Tracks102 in
Length w/ Blade163 in
Length w/o Blade121 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Transmission TypeHydrostatic
Number of Forward Gears10

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge67 in
Number of Track Rollers per Side6
Number of Shoes per Side38
Number of Carrier Rollers per Side1
Standard Shoe Size20 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width110 in
Height36 in
Capacity2.39 yd³
Blade Angle (both directions)25 °
