New Holland

D95 WT

Crawler Dozer

Operating Weight
20,201 lb
Max Speed - Forward
6.0 mph
Gross Power
99.0 hp
Net Power
96.0 hp
All crawler dozers

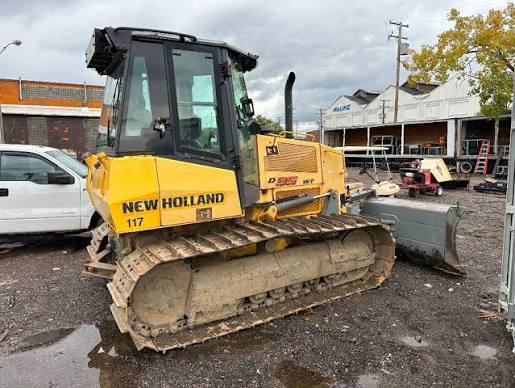

New Holland D95 WT Crawler Dozer
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,201 lb
Fuel Capacity50.1 gal
Cooling System Fluid Capacity5.0 gal
Final Drives Fluid Capacity3.8 gal
Engine Oil Capacity4.2 gal
Hydraulic Fluid Capacity20.0 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model667T/M2
Displacement409 in³
Power Measured @2,000 rpm
Gross Power99.0 hp
Net Power96.0 hp
Number of Cylinders6
AspirationNatural
Torque Measured @1,200 rpm
Max Torque325 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.3 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab109 in
Length of Track on Ground94 in
Width Over Tracks111 in
Length w/ Blade168 in
Length w/o Blade130 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Transmission TypeHydrostatic
Number of Forward Gears—

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge71 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Number of Carrier Rollers per Side1
Standard Shoe Size24 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width121 in
Height36 in
Capacity2.60 yd³
Blade Angle (both directions)25 °
