New Holland

HW305

Mower Conditioner

Operating Weight w/o Attachment
10,235 lb
Max Speed
11.0 mph
Displacement
274 in³
Power
98.0 hp
All mower conditioners/windrowers

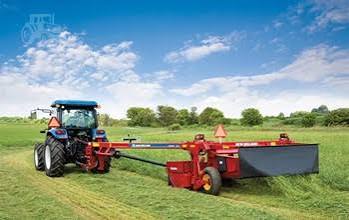

New Holland HW305 Mower Conditioner
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment10,235 lb
Fuel Capacity73.0 gal
Alternator Supplied Amperage135 A
Operating Voltage12 V

Engine

Engine specifications
Displacement274 in³
Power98.0 hp
AspirationTurbocharged air-to-air intercooler
Power Measured @2,300 rpm
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance34 in
Height - Top of Cab133 in
Wheelbase135 in
Front Wheel Tread Width127 in
Rear Wheel tread Width - max120 in
Rear Wheel Tread Width - min90 in
Length w/ Header281 in
Length w/o Header199 in

Transmission

Transmission specifications
Max Speed11.0 mph
Final Drive TypePlanetary Hubs
Transmission Typehydrostatic
Number of Reverse Gears1
Number of Forward Gears1
