New Holland

HW365

Mower Conditioner

Operating Weight w/o Attachment
12,300 lb
Max Speed
18.0 mph
Displacement
456 in³
Power
225.0 hp
All mower conditioners/windrowers

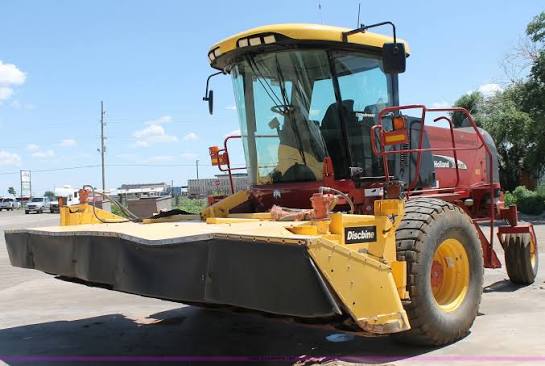

New Holland HW365 Mower Conditioner
1 / 5
Image 1 of 5
Image: agdieselperformance.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment12,300 lb
Fuel Capacity120.0 gal
Alternator Supplied Amperage135 A
Operating Voltage24 V

Engine

Engine specifications
Displacement456 in³
Power225.0 hp
AspirationTurbocharged with air-to-air intercooler
Power Measured @2,100 rpm
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance40 in
Height - Top of Cab135 in
Wheelbase138 in
Front Wheel Tread Width130 in
Rear Wheel tread Width - max120 in
Rear Wheel Tread Width - min90 in
Length w/ Header267 in
Length w/o Header199 in

Transmission

Transmission specifications
Max Speed18.0 mph
Final Drive TypePlanetary Hubs
Transmission Type2-speed hydrostatic
