New Holland

T4.050

Tractor

Displacement
275 in³
Power Measured @
2,300 rpm
Gross Power
95.0 hp
All tractors

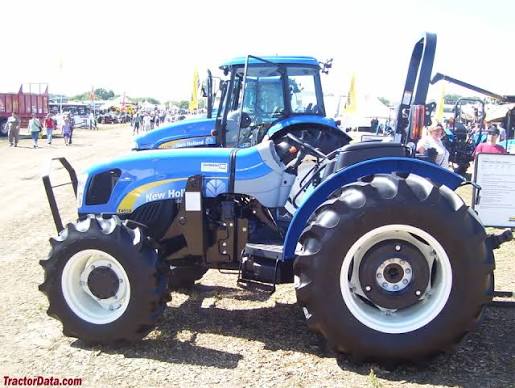

New Holland T4.050 Tractor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity21.7 gal
3 Point Hitch Lift Capacity @ 24 inches3,968 lb
3 Point Hitch TypeCat. II/I
Alternator Supplied Amperage120 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelNEF
Displacement275 in³
Power Measured @2,300 rpm
Gross Power95.0 hp
Number of Cylinders4
Aspirationturbocharged air to air intercooled
PTO Power80.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.5 gal/min
Number of Remote Control Valves1
Relief Valve Pressure2,755 psi
Relief Valve Setting2,755 psi

Dimensions

Dimensions specifications
Height - Top of Cab93 in
Overall Length12 in
Tire SizeFront 12.4R20 Rear 16.9x28R1
Height - Top of ROPS/FOPS93 in
Height78 in

Transmission

Transmission specifications
Max Speed23.5 mph
Number of Forward Gears16
Number of Reverse Gears16

Production

Production specifications
SeriesT4000 Series
Years Manufactured2,008 – 2,011
