New Holland

T5.070

Tractor

Displacement
275 in³
Power Measured @
2,300 rpm
Gross Power
115.0 hp
All tractors

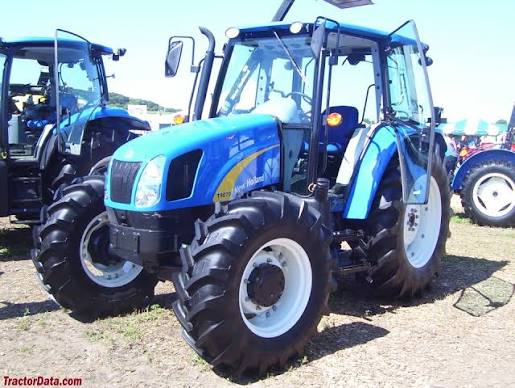

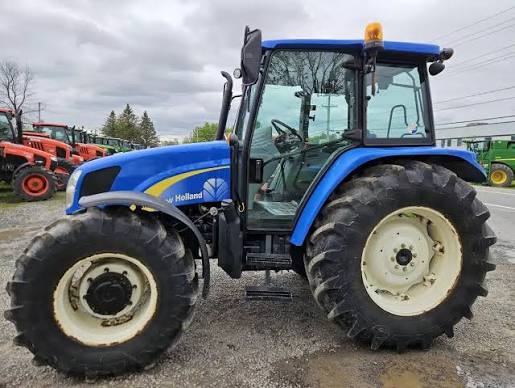

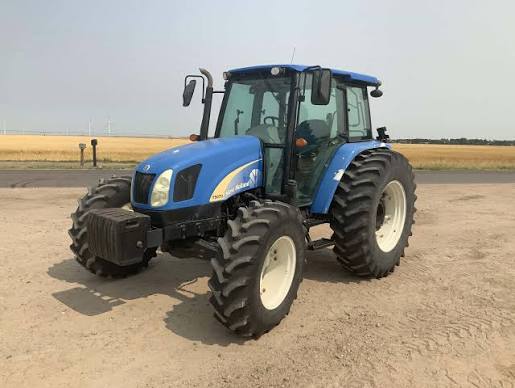

New Holland T5.070 Tractor
1 / 5
Image 1 of 5
Image: mchughtractors.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
3 Point Hitch Lift Capacity @ 24 inches5,743 lb
3 Point Hitch TypeCat II
Turning Radius159 in
Alternator Supplied Amperage120 A
Operating Voltage12 V

Engine

Engine specifications
Displacement275 in³
Power Measured @2,300 rpm
Gross Power115.0 hp
Number of Cylinders4
PTO Power96.0 hp
Torque Rise30.0 %

Hydraulic System

Hydraulic System specifications
Number of Remote Control Valves2
Relief Valve Pressure2,871 psi
Relief Valve Setting2,871 psi

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Tire Size18.4x30
Height - Top of ROPS/FOPS109 in

Transmission

Transmission specifications
Max Speed18.7 mph
Number of Forward Gears12
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4x30

Production

Production specifications
SeriesT5000 Series
Years Manufactured2,008 – 2,013
