New Holland

T7.060

Tractor

Displacement
412 in³
Power Measured @
2,200 rpm
Gross Power
210.0 hp
All tractors

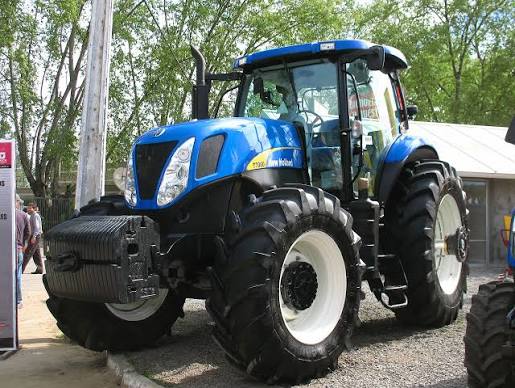

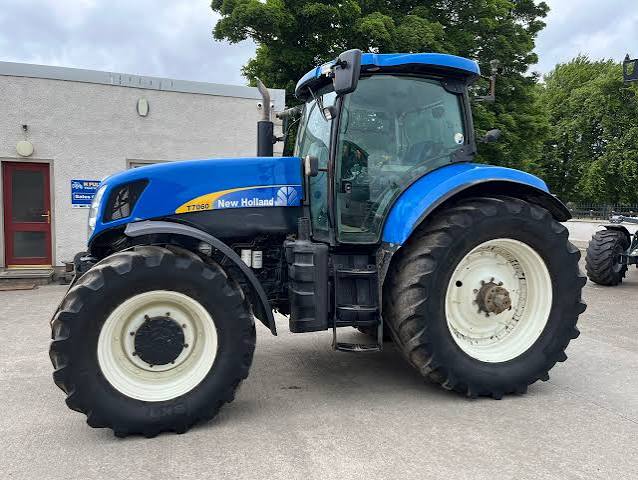

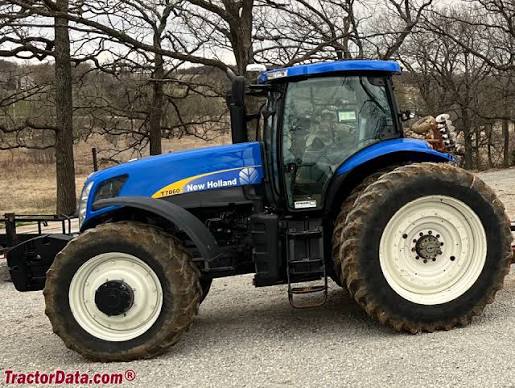

New Holland T7.060 Tractor
1 / 5
Image 1 of 5
Image: newhollandag.co.za

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity116.0 gal
3 Point Hitch Lift Capacity @ 24 inches15,873 lb
3 Point Hitch TypeCat II/IIIN
Alternator Supplied Amperage150 A
Operating Voltage12 V
Hydraulic System Fluid Capacity26.5 gal
Engine Oil Capacity4.0 gal

Engine

Engine specifications
Displacement412 in³
Power Measured @2,200 rpm
Gross Power210.0 hp
Number of Cylinders6
AspirationTurbocharged/intercooled
PTO Power180.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity56.6 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab120 in
Wheelbase114 in
Tire Size18.4R42

Transmission

Transmission specifications
Number of Forward Gears18
Transmission Type18x6 Power command full powershift
Number of Reverse Gears6

Production

Production specifications
SeriesT7000 Series
Years Manufactured2,007 – 2,011

Axles

Axles specifications
Axle Diameter4 in
Axle Length98 in
