New Holland

TD5050

Tractor

Operating Weight
7,802 lb
Displacement
275 in³
Power Measured @
2,500 rpm
Gross Power
95.0 hp
All tractors

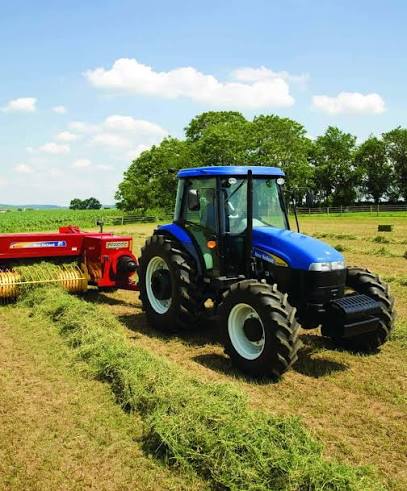

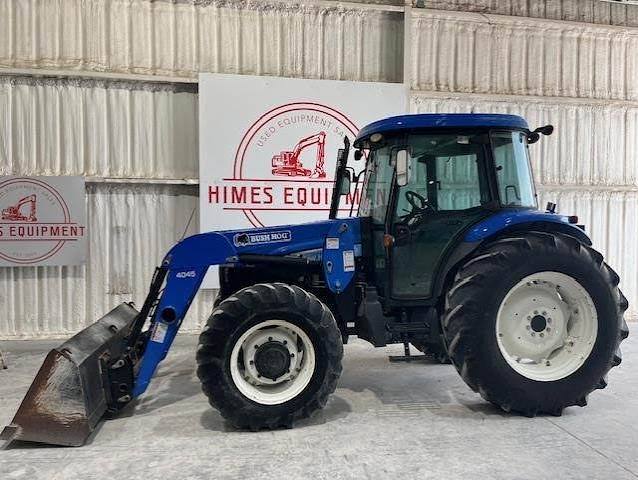

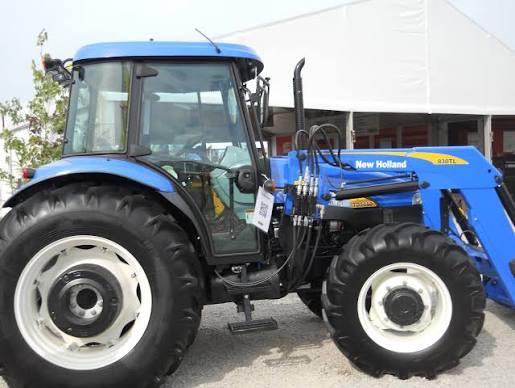

New Holland TD5050 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,802 lb
Fuel Capacity23.8 gal
Operating Voltage12 V
Tire Size Front - 2wd / 4wd7.50-20

Engine

Engine specifications
Displacement275 in³
Power Measured @2,500 rpm
Gross Power95.0 hp
Number of Cylinders4
Torque Measured @1,300 rpm
Max Torque288 lb-ft
Engine MakeTurk Tractor
PTO Power80.7 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.9 gal/min
Number of Remote Control Valves—

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase93 in
Overall Length167 in
Height - Top of ROPS/FOPS110 in

Transmission

Transmission specifications
Number of Forward Gears12
Transmission TypePartially synchronized power shuttle
Number of Reverse Gears12

Production

Production specifications
SeriesTD5000 Series
Years Manufactured2,009 – 2,019
