New Holland

TN75FA

Tractor

Displacement
238 in³
Power Measured @
2,300 rpm
Gross Power
72.0 hp
All tractors

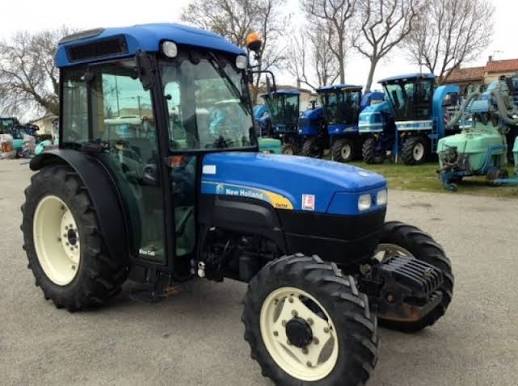

New Holland TN75FA Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
3 Point Hitch TypeCat II
Alternator Supplied Amperage85 A
Operating Voltage12 V

Engine

Engine specifications
Displacement238 in³
Power Measured @2,300 rpm
Gross Power72.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,400 rpm
Max Torque208 lb-ft
PTO Power60.0 hp
Torque Rise32.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity12.4 gal/min
Number of Remote Control Valves2
Relief Valve Pressure2,755 psi
Relief Valve Setting2,755 psi

Dimensions

Dimensions specifications
Height - Top of Cab94 in
Overall Width60 in
Tire SizeRear 380/70R24
Width Outside Frame60 in
Height - Top of ROPS/FOPS91 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size380/70R24
