New Holland

TS100A

Tractor

Displacement
273 in³
Power Measured @
2,200 rpm
Gross Power
100.0 hp
All tractors

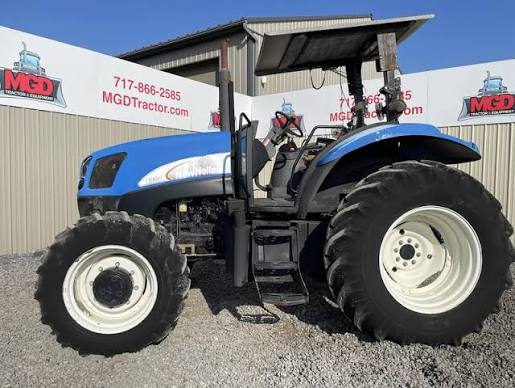

New Holland TS100A Tractor
1 / 5
Image 1 of 5
Image: tractorzoom.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity46.7 gal
3 Point Hitch Lift Capacity @ 24 inches9,285 lb

Engine

Engine specifications
Displacement273 in³
Power Measured @2,200 rpm
Gross Power100.0 hp
Number of Cylinders4
AspirationTurbo
PTO Power80.0 hp

Hydraulic System

Hydraulic System specifications
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab118 in
Height - Top of ROPS/FOPS113 in

Transmission

Transmission specifications
Number of Forward Gears12
Transmission TypeSynchro Command w/ Mechanical Shuttle
Number of Reverse Gears12

Production

Production specifications
SeriesTS-A Series
Years Manufactured2,003 – 2,006
